China Stainless Steel Wire 19 Gauge

Stainless steel wire in 19 gauge (approximately 0.91 mm diameter) is a precision-engineered material commonly used in applications requiring a balance of tensile strength, corrosion resistance, and formability. This gauge falls within the medium-fine wire range, making it suitable for both structural and functional components where dimensional consistency and surface integrity are critical.

Material Composition and Properties

The most common grades for 19 gauge stainless steel wire are AISI 304 and 316, selected based on environmental exposure and mechanical demands. Grade 304 contains 18% chromium and 8% nickel, offering good resistance to oxidation and mild corrosives. Grade 316 adds 2-3% molybdenum, significantly enhancing resistance to chlorides and acidic environments, making it preferable for marine, chemical processing, or outdoor applications.

Mechanical properties vary slightly by grade and temper. Annealed 304 wire typically exhibits a tensile strength of 500–700 MPa and elongation of 40–60%, allowing for bending and forming without cracking. Full-hard temper increases tensile strength to 1,200–1,500 MPa but reduces ductility. These values are influenced by cold drawing processes, which also improve surface finish and dimensional tolerance.

Manufacturing Process and Tolerances

Production begins with hot-rolled rod, which is pickled to remove scale, then cold-drawn through a series of dies to achieve the target 0.91 mm diameter. Each pass reduces cross-sectional area while increasing length and strength. Intermediate annealing may be applied to restore ductility for multi-stage drawing. Final processing includes straightening, cleaning, and spooling under controlled tension to prevent deformation.

Dimensional tolerance for 19 gauge wire is typically ±0.02 mm, depending on customer specification and drawing precision. Surface roughness (Ra) ranges from 0.2 to 0.8 μm after final drawing, suitable for applications requiring low friction or coating adhesion. Edges are smooth and burr-free to ensure safe handling and reliable performance in dynamic applications.

Typical Applications

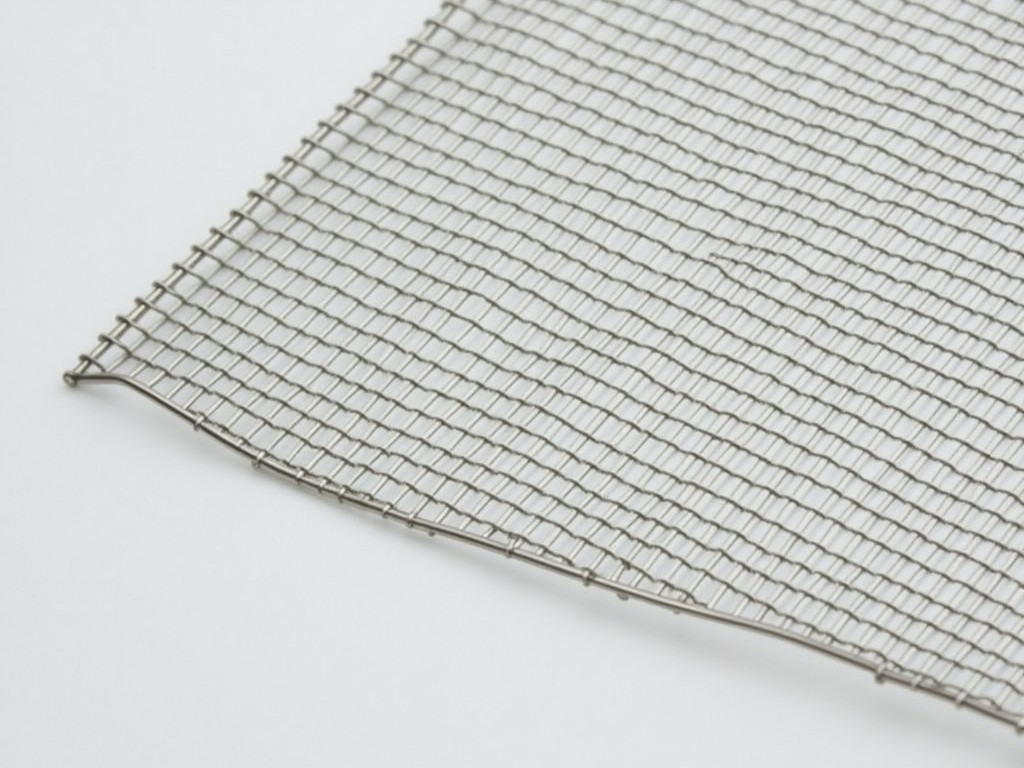

This wire gauge is frequently used in the fabrication of wire forms, springs, and mechanical fasteners where space is limited but load-bearing capacity is required. In filtration systems, it serves as a weaving medium for fine mesh screens used in liquid-solid separation, where its diameter allows high open area without compromising structural integrity under pressure differentials.

In the medical device sector, 19 gauge stainless steel wire is employed in guidewire cores, orthodontic arches, and surgical staples, benefiting from its biocompatibility (when passivated) and fatigue resistance. It is also used in electrical applications such as resistance heating elements and electrode cores, where stable resistivity and oxidation resistance at elevated temperatures are essential.

Customization Options

Beyond standard grades and tempers, the wire can be supplied with surface treatments tailored to specific functions. Passivation enhances corrosion resistance by removing free iron from the surface. Electropolishing produces a microscopically smooth, reflective finish that minimizes particle adhesion—critical in pharmaceutical or semiconductor environments. Optional coatings such as nylon, PTFE, or zinc-aluminum alloys can be applied for insulation, wear reduction, or additional barrier protection.

Spooling configurations are adjustable: wire can be provided on plastic spools, wooden reels, or paper cores with weights ranging from 0.5 kg to 25 kg per unit, depending on handling equipment and production line integration. Custom labeling, including barcodes and material traceability tags, supports inventory management and quality auditing.

Quality Control and Testing

Each batch undergoes diameter verification using laser micrometers or pneumatic gauges at multiple points along the length to ensure consistency. Tensile testing is performed on samples per ASTM A370 to validate strength and elongation values. Surface inspection is conducted under 10x magnification to detect scratches, pits, or drawing defects that could compromise performance.

For applications requiring certification, mill test reports (MTRs) are available upon request, detailing chemical composition, mechanical properties, and heat treatment history. Additional testing such as salt spray exposure (ASTM B117), sulfide stress cracking (NACE MR0175), or fatigue cycling can be arranged based on project requirements.

Packaging and Handling

To prevent surface damage and contamination during transit, wire is wound under uniform tension and wrapped with corrosion-inhibiting paper or polyethylene film. Spools are secured in cardboard boxes or wooden crates with internal bracing to prevent shifting. Desiccant packs are included in humid climates to mitigate moisture accumulation.

Handling recommendations include using gloves to avoid oil transfer, storing away from carbon steel particles to prevent rust staining, and keeping spools vertical to avoid lateral deformation. Shelf life is indefinite when stored in dry, temperature-stable conditions, though re-inspection is advised after extended storage before critical use.

Request Technical Data Sheet or Quotation
