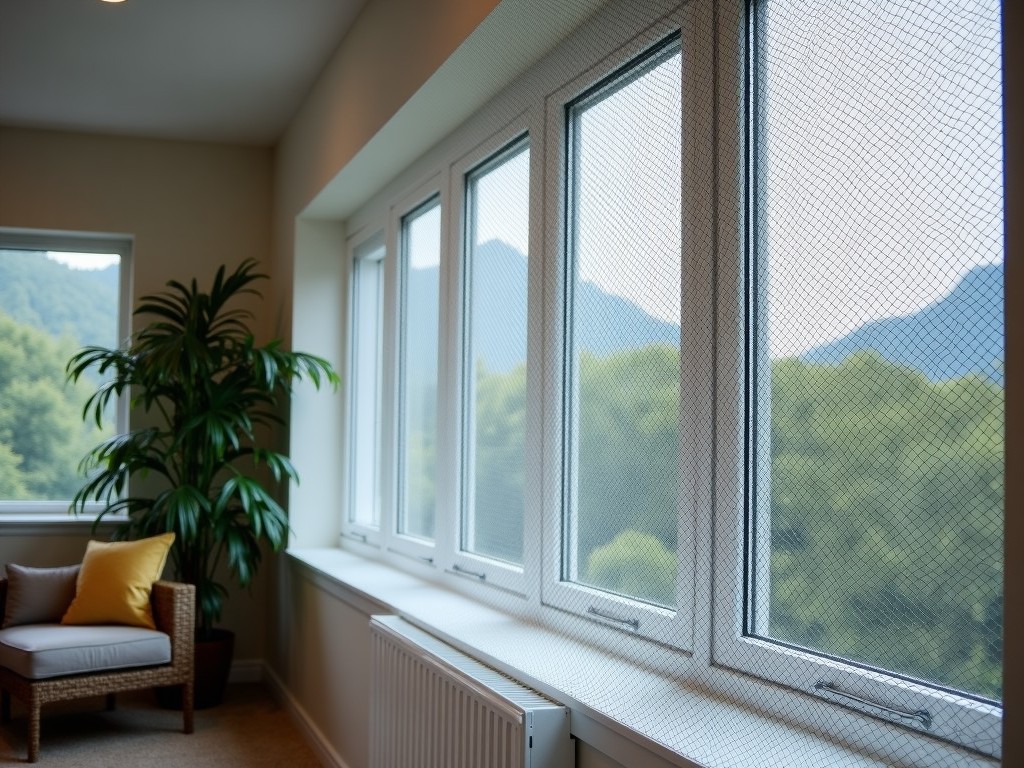

Temporary Window Security Screens

Temporary window security screens provide a removable barrier designed to deter unauthorized access through glazed openings while maintaining visibility and ventilation. Unlike permanent grilles or shutters, these systems are engineered for rapid deployment and removal without damaging the host structure, making them suitable for construction sites, vacant properties, event venues, and short-term lease agreements where long-term modifications are impractical or prohibited.

Core Design Principles

The structural integrity of temporary window security screens relies on a balance between impact resistance, ease of installation, and minimal visual obstruction. Frames are typically constructed from extruded aluminum alloys (6063-T5) with a minimum wall thickness of 1.2mm, providing sufficient rigidity to resist forced entry attempts while remaining lightweight enough for single-person handling. Corner joints employ mechanical fasteners or interlocking splines rather than welding, allowing disassembly without permanent alteration to the frame.

Mesh selection is critical to the screen’s performance profile. Common options include 12-gauge galvanized steel wire woven in a 50mm x 50mm pattern, offering a tensile strength of approximately 450 MPa and resistance to cutting with standard hand tools. For applications requiring higher visibility or reduced wind load, 3mm diameter stainless steel (grade 304) mesh with a 75mm x 75mm aperture may be specified, providing equivalent security with 30% less material density. All mesh edges are folded over and secured within a u-channel frame profile to prevent fraying and eliminate sharp protrusions.

Installation and Removal Mechanics

Installation systems are designed to transfer load directly to the window reveal or surrounding masonry without relying on adhesive bonds or surface-mounted brackets that could damage finishes. The most common method employs spring-loaded tension rods or adjustable steel brackets that brace against the interior reveals, applying uniform pressure via rubberized pads to distribute load and prevent point damage to plaster, wood, or vinyl surrounds. Adjustment ranges typically accommodate reveals between 75mm and 200mm deep.

For masonry or concrete openings, removable anchor plates with expansion bolts can be pre-installed into the reveal, allowing the screen frame to hook or slide into position using pin-and-clevis or cam-lock mechanisms. This method enables repeated installation cycles with consistent alignment and takes less than 90 seconds per unit once anchors are in place. Removal reverses the process, leaving only minimal, flush-mounted anchors that can be left in place or filled with matching mortar if aesthetics are a concern.

Performance Characteristics Under Load

Resistance to manual attack is evaluated based on the time and tools required to create an opening large enough for human passage. Testing under simulated attack conditions (using crowbars, bolt cutters, and body weight) shows that properly installed 12-gauge steel mesh screens typically resist penetration for over 3 minutes under sustained effort, exceeding the threshold considered effective for deterring opportunistic intrusion. The aluminum frame contributes minimally to shear resistance but prevents mesh deflection that could create leverage points.

Wind load resistance is a secondary but important consideration, particularly for elevated installations. The open mesh design reduces drag coefficient to approximately 1.2, significantly lower than solid panels. At a basic wind speed of 40 m/s (90 mph), the net force on a 1.5m x 1.0m screen remains under 800N, well within the capacity of standard tension-based anchoring systems. Deflection under load is limited to less than 5mm at the center span, maintaining functional integrity without disengagement from mounting points.

Material Selection and Environmental Durability

Aluminum frames are supplied with a clear anodized finish (minimum 12µm thickness) or powder-coated in RAL 9005 (black) or RAL 7035 (light gray) to resist corrosion in outdoor environments. Anodizing provides a hard, non-reactive surface suitable for coastal areas where chloride exposure is a concern, while powder coating offers enhanced UV stability and scratch resistance for prolonged sun exposure. Both finishes meet QUALICOAT Class 1 standards for exterior architectural applications.

Steel mesh undergoes hot-dip galvanization to a minimum coating weight of 275g/m² (zinc), providing protection against rust in humid or intermittently wet conditions for up to 15 years without maintenance. Stainless steel mesh (grade 304) is selected for environments with high salinity, industrial pollutants, or frequent washdowns, offering corrosion resistance equivalent to ISO 9223 C5-M classification. All fasteners are made from A2-70 stainless steel to prevent galvanic coupling when in contact with aluminum frames.

Customization and Dimensional Flexibility

Standard sizes are available in increments of 50mm width and height, ranging from 600mm x 600mm to 1800mm x 1500mm, covering the majority of residential and light commercial window openings. For non-standard dimensions, frames can be cut to length and assembled using slip-on corner keys, allowing any width between 500mm and 2400mm and height between 400mm and 2000mm to be accommodated without tooling changes. Custom mesh patterns or frame colors are available upon request, though lead times increase accordingly.

Additional features include optional hinged access panels (secured with tamper-resistant bolts) for emergency egress or maintenance, and integrated foam seals along the frame perimeter to reduce rattling and improve weather resistance. These seals are made from closed-cell EPDM rubber, compressed to 30% of original thickness during installation, providing durability across temperature ranges from -20°C to +80°C without hardening or cracking.

Quality Assurance and Dimensional Consistency

Dimensional accuracy is maintained through CNC cutting of frame profiles to ±0.2mm tolerance and precision punching of mesh attachment points. Each frame undergoes a squareness check using diagonal measurement; a difference exceeding 3mm between diagonals triggers rework. Mesh tension is verified via deflection testing under a 50N central load, ensuring uniform tightness across the panel to prevent sagging or vibration-induced noise.

Final inspection includes a pull-test simulation on corner joints, applying 200N outward force to confirm mechanical integrity of fasteners. Packaging uses corner protectors and stretch-wrapped bundles to prevent abrasion during transit. Each unit is labeled with a unique identifier linking to material certificates and inspection records, enabling traceability for project audits or warranty claims.

Typical Applications and Use Cases

Construction sites use these screens to secure ground-floor windows during off-hours when traditional alarm systems may not yet be active. The removable nature allows daily access for inspections or material delivery without compromising overnight security. In property management, vacant units between tenancies benefit from immediate deployment following vacancy, reducing the risk of squatting or vandalism during the interval before re-letting, with screens removed and stored upon new tenant occupancy.

Event venues install temporary screens on peripheral windows or concession areas during large gatherings to prevent unauthorized climbing or object projection, then remove them post-event to restore normal aesthetics and ventilation. Retail properties undergoing renovation use them to maintain ground-floor security while display windows are stripped or replaced, avoiding the cost and lead time of fabricating permanent grilles that would later be discarded. Municipal authorities may specify them for historic buildings where permanent alterations are restricted by conservation guidelines.

Ordering and Project Coordination

To initiate a quotation, provide the width and height of each window opening, the reveal depth (distance from interior face to outer masonry/frame), and the substrate type (wood, vinyl, aluminum, concrete, or masonry). Indicate whether the installation is interior or exterior facing, and note any obstructions such as handles, locks, or window cranks that may affect frame placement. For projects requiring uniform appearance across multiple units, specify preferred frame color and mesh type.

Lead times typically range from 10 to 15 business days for standard sizes and finishes, extending to 20–25 days for custom colors or non-standard dimensions. Samples of frame profiles and mesh sections are available upon request to verify compatibility with site conditions. Packaging options include individual corrugated cartons for site distribution or palletized bulk wrapping for centralized storage, with corner protection and moisture barriers included as standard.
