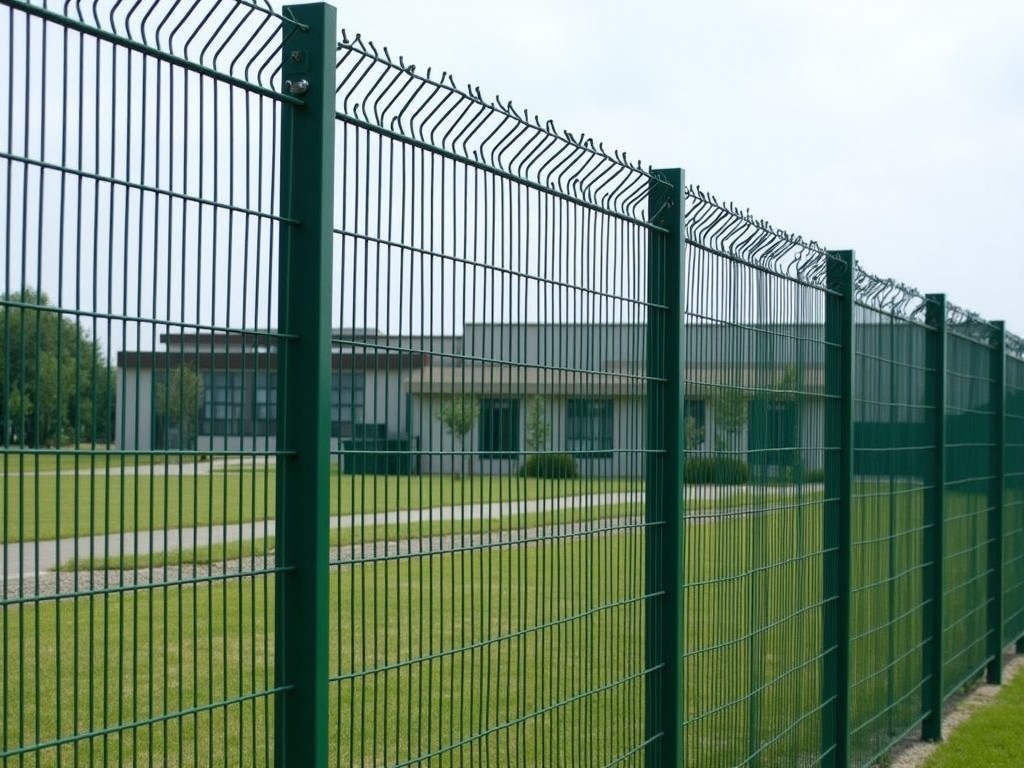

Wire Mesh Security Fencing

Wire mesh security fencing provides a durable, scalable barrier solution for industrial, commercial, and infrastructure sites where perimeter integrity, visibility, and resistance to forced entry are critical. Constructed from welded or woven steel wire panels tensioned between support posts, this fencing type balances structural strength with open sightlines, enabling surveillance while deterring climbing and cutting attempts. Unlike solid barriers, wire mesh allows airflow and light transmission, reducing wind load and visual obstruction—key considerations in exposed or regulated environments.

Material Composition and Corrosion Protection

The base material is typically low-carbon steel wire, selected for its tensile strength and formability. Wire diameters range from 3.0 mm to 5.0 mm depending on security level, with mesh apertures commonly sized at 50x50 mm, 75x75 mm, or 100x100 mm to prevent finger or tool ingress while maintaining visibility. To resist environmental degradation, the wire undergoes hot-dip galvanization per ASTM A123, forming a zinc coating typically between 55 and 85 microns thick. For harsh coastal or industrial atmospheres, a supplementary powder-coated layer (polyester or epoxy-based, 60–100 microns) may be applied over the galvanized finish, significantly extending service life beyond 25 years in C4 corrosivity zones.

Structural Design and Installation Mechanics

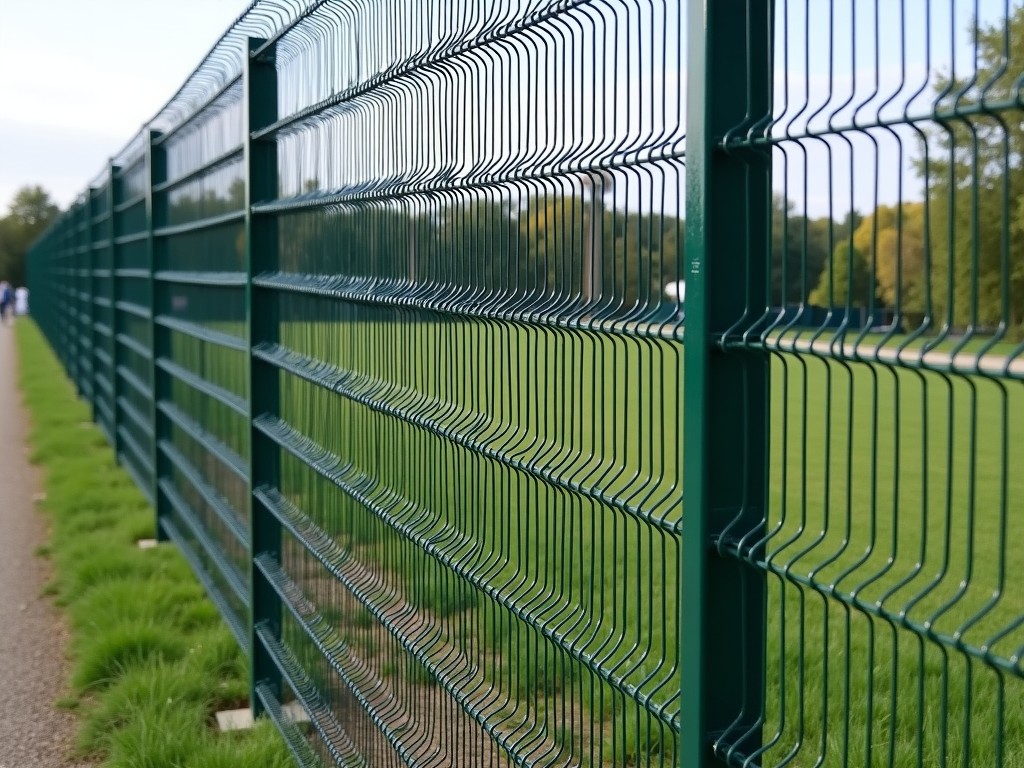

Panels are fabricated as rigid rectangles, usually 2.0 to 2.5 meters in height and 2.5 to 3.0 meters in width, with longitudinal and transverse wires electrically resistance-welded at every intersection to prevent unraveling if cut. These panels are secured to steel posts—typically C-channel or square tubular sections—using proprietary clamps, brackets, or through-bolting systems that maintain tension and resist vandalism. Post embedment depth is generally 600 mm in concrete foundations for standard installations, increasing to 900 mm in high-wind or high-load scenarios. The system accommodates ground slopes through adjustable post heights or stepped panel configurations, ensuring consistent top-line alignment and preventing gap formation at the base.

Security Performance Characteristics

Security effectiveness is determined by mesh geometry, wire thickness, panel rigidity, and attachment integrity. A 50x50 mm aperture with 4.0 mm wire resists manual climbing due to insufficient foothold and hinders bolt cutter penetration, requiring significant force and time to breach. For elevated threat levels, configurations such as 3.0 mm wire with 25x25 mm mesh or double-layered panels increase shear resistance and deter tactical breaches. The open design also eliminates blind spots, enabling CCTV and patrol effectiveness—unlike solid walls that create concealment zones. Impact resistance is validated through dynamic load testing, where panels absorb kinetic energy from forced entry attempts without permanent deformation when properly tensioned and anchored.

Comparison of Common Configurations

Customization Options for Site-Specific Requirements

Beyond standard panels, the system supports tailoring to unique site challenges. Angled or curved panels can be fabricated to follow irregular perimeters without compromising tension. Integration with access control is facilitated through modular gate frames matching the fence’s mesh and finish, available in single or double-leaf configurations with panic hardware, electric strikes, or electronic locks. For areas requiring underground protection, a buried mesh skirt or concrete plinth can be added to deter tunneling. Top-edge enhancements include inward- or outward-facing overhangs, barbed tape, or concertina wire mounts—all engineered to attach without damaging the corrosion coating. All modifications are designed to maintain structural continuity and preserve the galvanic protection system.

Quality Control and Manufacturing Considerations

Consistent performance relies on precise manufacturing tolerances. Wire straightness is monitored during feeding to ensure uniform weld penetration, with tensile strength tested per batch to confirm compliance with minimums (typically 350–500 MPa). Post-weld, panels undergo a pull-off test on random samples to verify weld integrity—any panel showing wire separation under load is rejected. Coating thickness is measured via magnetic induction at multiple points per panel, with non-conforming areas re-treated before shipment. Final assembly checks include squareness verification (diagonal tolerance <5 mm), tension rod alignment, and surface inspection for coating defects. Documentation, including mill certificates and coating reports, is available upon request for project audits.

Applications: Where Visibility and Strength Are Both Required

Wire mesh fencing is selected in environments where security must not impede operational oversight. In substations, it prevents unauthorized access while allowing thermographic inspections and visual monitoring of equipment. Along transportation corridors, it protects right-of-way without creating snow drift barriers or visual noise for drivers. Correctional facilities use it to balance containment with officer sightlines, reducing blind spots during patrols. Data centers deploy it to secure perimeters without obstructing CCTV coverage or creating electromagnetic interference risks associated with solid metal barriers. Its non-reflective finish also minimizes glare in solar-sensitive areas, making it suitable for installations near photovoltaic arrays or aviation paths.

For technical consultation, custom configuration requests, or project-specific quoting, contact our engineering team to discuss your site’s security, environmental, and integration requirements.
