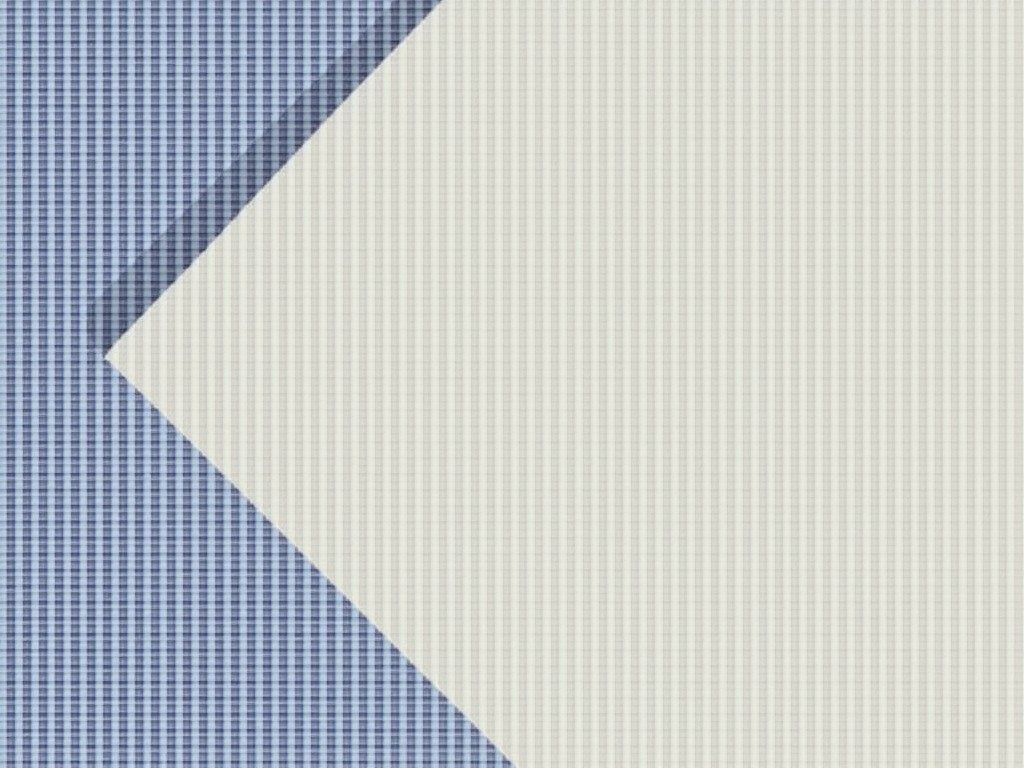

China Vinyl Coated Polyester Mesh Fabric

Vinyl coated polyester mesh fabric is a composite material engineered for applications requiring tensile strength, environmental resistance, and dimensional stability. The base is a woven or knitted polyester substrate, typically made from continuous filament yarns with a denier range of 840D to 1680D, providing inherent tear resistance and low elongation under load. This substrate is then fully saturated and coated on both sides with a plastisol-based polyvinyl chloride (PVC) compound, which encapsulates the fibers and forms a continuous protective layer.

The coating process involves precise control of viscosity, temperature, and dwell time to achieve uniform thickness without blocking the mesh openings. Standard coating weights range from 300 to 600 gsm (grams per square meter), depending on end-use requirements. The vinyl layer not only shields the polyester from UV radiation, moisture, and chemical exposure but also adds surface properties such as abrasion resistance, flame retardancy (when formulated with additives), and weldability for seaming or bonding to other materials.

Mesh geometry is defined by opening size and strand diameter, which directly influence airflow, light transmission, and filtration efficiency. Common opening sizes vary from 2mm x 2mm for insect screening to 25mm x 25mm or larger for architectural shading and safety barriers. The open area percentage—calculated as the ratio of void space to total area—typically falls between 30% and 70%, allowing designers to balance visibility, ventilation, and structural integrity based on project specifications.

Tensile strength is a critical performance metric, measured in both warp and weft directions according to ISO 1421 or ASTM D5034 standards. Typical values for 1100D polyester base fabric with 400 gsm coating range from 1800 N/50mm in the warp direction to 1500 N/50mm in the weft direction, with elongation at break under 25%. These values ensure the fabric can withstand sustained tension in applications like retractable awnings, conveyor belts, and tensile structures without permanent deformation or creep over time.

Dimensional stability is further enhanced by heat-setting the polyester substrate during manufacturing, which reduces residual stress from weaving. This step minimizes shrinkage or stretching when exposed to temperature fluctuations, making the fabric suitable for outdoor installations where thermal cycling occurs daily. Combined with the PVC coating’s resistance to plasticizer migration, the material maintains its mechanical properties for 5–10 years in temperate climates, with extended lifespan possible in controlled environments or with UV-stabilized formulations.

Flammability performance can be tailored through additive packages in the PVC compound. Standard formulations meet UL 94 HB ratings, while customized versions incorporating antimony trioxide and phosphate esters can achieve UL 94 V-0 or NFPA 701 compliance for interior architectural uses. Flame-retardant grades are commonly specified for exhibition booths, theater backdrops, and temporary event structures where fire safety codes apply.

Chemical resistance depends on the PVC formulation. General-purpose grades resist diluted acids, alkalis, and saline solutions but may degrade with prolonged exposure to ketones, esters, or aromatic hydrocarbons. For industrial environments involving oil or grease, plasticizer-resistant or specialty copolymer coatings are available upon request. The inert nature of the encapsulated polyester core ensures that even if the surface coating wears, the underlying fiber remains protected from moisture-induced hydrolysis.

Surface texture varies from smooth to embossed, depending on the cooling roller used during curing. Embossed patterns increase surface area and can improve grip in handling applications, while smooth finishes are preferred for printability or cleanability. The fabric accepts screen printing, digital printing, and heat transfer vinyl for branding or signage, with ink adhesion promoted by pre-treatment primers when necessary.

Edge treatment options include heat sealing, ultrasonic welding, or tape binding to prevent fraying and maintain coating integrity at cut edges. Heat sealing melts the PVC coating to form a homogeneous bead, while ultrasonic welding uses high-frequency vibration to bond layers without additives. These methods preserve the waterproof barrier and are essential in marine, agricultural, or medical applications where uncoated edges could wick moisture or harbor contaminants.

Technical Specifications

Applications

The combination of strength, flexibility, and environmental resistance makes vinyl coated polyester mesh suitable for demanding outdoor and industrial uses where untreated fabrics would degrade rapidly. In architectural shading systems, such as retractable awnings and pergola covers, the fabric provides controlled solar transmission while resisting wind load and rain penetration. The open mesh design reduces sail effect, lowering structural stress on frames compared to solid materials, and allows for passive cooling through natural convection.

In safety and containment applications, the fabric serves as debris netting on construction sites, fall protection barriers, and cargo securing systems. Its high tear strength prevents propagation of damage from localized impacts, while the vinyl coating resists abrasion from concrete edges or metal straps. Unlike nylon or polypropylene alternatives, polyester exhibits minimal moisture absorption, so the fabric does not gain significant weight when wet, maintaining predictable performance in variable weather conditions.

Agricultural applications include greenhouse shading, insect barriers, and windbreak screens. The UV-stabilized versions prevent premature embrittlement from solar exposure, and the non-toxic PVC formulations are safe for proximity to crops. Mesh openings can be selected to exclude specific pests while allowing adequate airflow and pollinator access, supporting integrated pest management strategies without chemical interventions.

Industrial uses involve conveyor belts for light-duty material handling, machine guards, and filtration media for liquid-solid separation. The smooth, non-porous surface prevents product adhesion and facilitates cleaning, while the open structure allows drainage or air flow as needed. In food processing environments, formulations compliant with FDA 21 CFR 177.1630 or EU 10/2011 are available for indirect food contact, ensuring the coating does not leach harmful substances under intended use conditions.

Marine environments benefit from the fabric’s resistance to saltwater, mold, and mildew. It is commonly used for boat covers, bimini tops, and dock fender sleeves where constant exposure to moisture and UV radiation would degrade untreated textiles. The vinyl coating inhibits biological growth, and the polyester base does not rot, unlike natural fibers such as cotton or jute, which lose strength when wet.

Customization Options

Manufacturers adjust formulation and processing parameters to meet specific performance targets, allowing buyers to specify characteristics beyond standard catalog offerings. Coating thickness can be increased for enhanced chemical resistance or reduced for greater flexibility in folding or rolling applications. Plasticizer type and concentration are modified to improve low-temperature flexibility or resist migration in high-heat environments, directly affecting the material’s ductility and lifespan under thermal cycling.

Color is achieved through pigments dispersed in the PVC compound, with standard options including white, black, gray, navy, and forest green. Custom color matching to Pantone or RAL specifications is available for branding or architectural integration, though minimum order quantities may apply due to the need to purge and recompound the extrusion system. UV stabilizers and antioxidants are adjusted based on geographic location and expected solar intensity to optimize service life in different climate zones.

Flame retardancy levels are tailored by varying the concentration and type of additive packages. Halogen-free formulations using phosphorus-nitrogen systems are offered for applications where smoke toxicity is a concern, such as in enclosed transportation or public facilities. Antimicrobial additives can be incorporated to inhibit mold and mildew growth on the surface, particularly valuable in humid climates or medical-related uses where hygiene is critical.

Mesh construction can be altered to change tensile behavior and filtration properties. Options include different weave patterns (plain, twill, ripstop), yarn counts, and opening geometries. Ripstop weaves incorporate thicker reinforcement threads at regular intervals to limit tear propagation, while modified geometries such as diamond or hexagonal apertures can improve shear resistance or directional strength for specific load paths.

Width availability typically ranges from 1.0 to 3.2 meters, with wider formats requiring specialized looms and handling equipment. Custom slitting to narrower widths is possible without compromising edge integrity when performed using heated blades or ultrasonic tools that reseal the coating. Roll lengths are standardized at 30 or 50 linear meters but can be adjusted based on production capabilities and customer logistics, reducing waste and handling complexity in large-scale installations.

Quality Control

Consistent performance begins with raw material verification. Polyester yarns are tested for tenacity, elongation, and shrinkage before weaving, while PVC resin lots are checked for K-value, viscosity, and plasticizer absorption characteristics. Incoming materials are accompanied by certificates of analysis, and any deviation from specifications triggers quarantine and re-evaluation to prevent batch contamination or inconsistent coating adhesion.

During production, inline monitoring systems track coating weight, thickness, and width using laser or ultrasonic sensors. Real-time feedback adjusts extrusion speed, roller pressure, and oven temperature to maintain uniformity across the entire roll. Visual inspection under standardized lighting detects surface defects such as pinholes, streaks, or uneven curing, which could compromise barrier properties or aesthetics.

Finished goods undergo mechanical testing on samples cut from both ends and the middle of each roll to assess longitudinal consistency. Tensile, tear, and adhesion strength are measured according to agreed-upon standards, with results compared to internal control limits. Adhesion between coating and substrate is evaluated using peel tests (ASTM D903) to ensure the vinyl layer remains bonded under flexing or peeling stresses, preventing delamination in service.

Dimensional stability is verified through heat aging tests, where samples are exposed to elevated temperatures (e.g., 70°C for 72 hours) and then measured for shrinkage or distortion. This accelerates the evaluation of long-term performance and helps predict behavior in outdoor installations. Colorfastness to UV and weathering is assessed using xenon arc or QUV exposure, with gray scale ratings used to quantify fading or chalking.

For specialized requirements, third-party certification can be arranged. This includes flame retardancy testing to UL, NFPA, or EN standards; chemical resistance screening per ASTM D543; or food contact compliance validation. Test reports are provided with shipment documentation, and traceability is maintained through batch numbers linking raw materials, production parameters, and final inspection data.

Packaging and Logistics

To preserve product integrity during transit and storage, the fabric is wound onto rigid cores made of cardboard, plastic, or metal, with core diameter selected based on roll weight and width to prevent crushing or deformation. The roll is then wrapped in polyethylene film to protect against moisture, dust, and surface abrasion. End plugs or caps are added to keep the fabric clean and prevent shifting of the wound layers.

For long-distance or export shipments, additional protection includes corner guards, edge protectors, and strapping to secure the roll on pallets. Palletized units are stretch-wrapped and may include corner boards to stabilize the load. Desiccant packets are sometimes included inside the wrapping to control humidity, particularly for shipments to tropical climates where condensation could promote mold growth on the packaging or affect coating properties over time.

Rolls are labeled with essential information: product code, width, length, coating weight, color, batch number, and any relevant certifications. Barcodes or QR codes enable scanning for inventory management, and handling instructions such as “Keep Dry” or “Do Not Stack” are printed on the outer wrap. Storage recommendations typically advise keeping rolls in a cool, dry place away from direct sunlight and sources of ozone, which can accelerate PVC degradation.

Lead times depend on order complexity. Standard colors and specifications in stock may ship within 3–5 business days after order confirmation. Custom formulations, colors, or widths require compounding and production scheduling, typically extending lead time to 10–20 weeks. Customers are advised to provide detailed specifications early in the process to allow for accurate planning and avoid delays due to material requalification or tooling changes.

Inquiry

Industrial buyers seeking vinyl coated polyester mesh fabric for technical evaluation or procurement are invited to submit detailed requirements. To receive an accurate quotation and lead time, please provide: intended application, required width and length, minimum tensile strength in warp and weft directions, preferred opening size or open area percentage, coating weight range, color, and any applicable certifications (e.g., flame retardancy, UV stability, food contact).

Include environmental conditions such as temperature range, UV exposure level, and contact with chemicals or oils to assist in material selection. For projects involving fabrication, specify needed edge treatments, seaming methods, or post-processing steps like printing or welding. Samples can be arranged upon request for physical evaluation, with sample size and shipping costs confirmed at the time of inquiry.

Contact our technical team to discuss your specifications. We will review your requirements and respond with feasible options, potential trade-offs, and next steps for validation. Visit /contactus to submit your inquiry form or reach out directly for immediate assistance.
