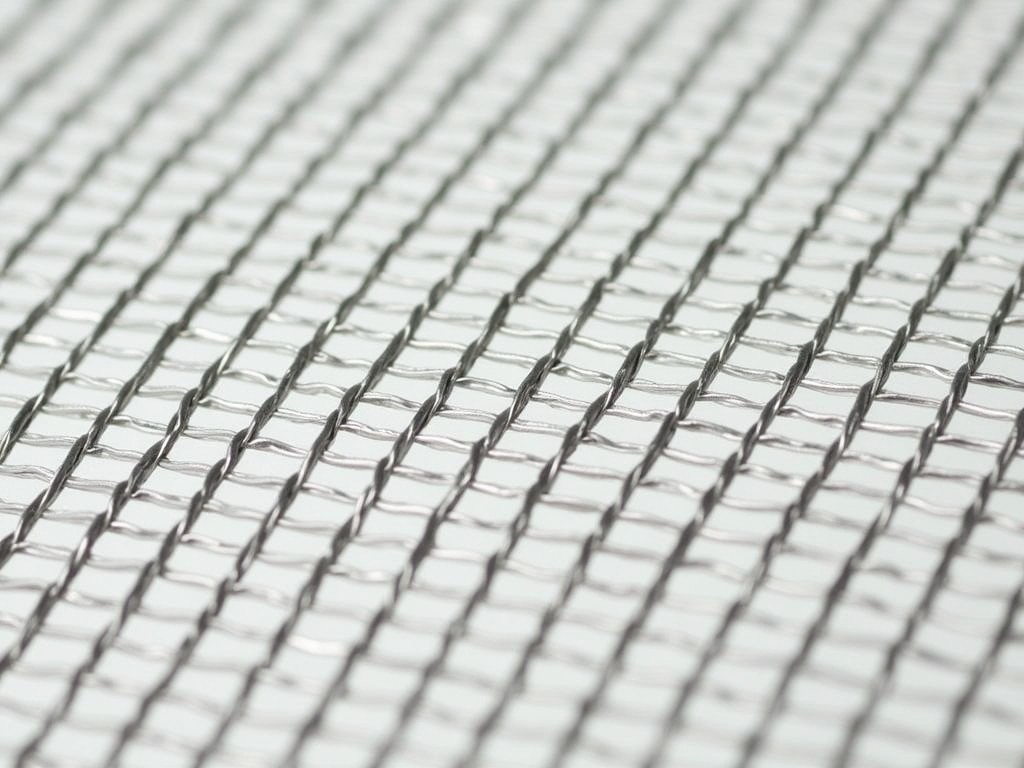

Stainless Steel Wire Mesh

Stainless Steel Wire Mesh is precision-woven from high-quality stainless steel wire, delivering exceptional durability and reliable performance across various industries.

Stainless steel is a versatile metal known for its excellent corrosion resistance, high strength, and availability in multiple shapes and forms. Its stain-resistant surface ensures low maintenance requirements, while the attractive luster enhances its suitability for architectural, filtration, and industrial applications.

Common stainless steel grades include 304, 304L, 316, 316L, 310, 310S, 314, and 321, each offering specific properties for different environmental and mechanical demands.

Available weaving styles: Plain weave, Twill weave, Dutch weave, Reverse Dutch weave, Five-heddle weave, and Crimped weave — allowing tailored solutions for filtration, separation, and structural uses.

Our stainless steel wire mesh is offered in a broad range of shapes, finishes, and specialty alloys. Supplied in cut-to-size lengths to minimize waste, it provides an economical, cost-effective choice for projects of any scale.

Plain Weave

Plain weave is the most common and simplest wire cloth construction. Warp and weft wires cross at 90-degree angles without pre-crimping, creating a balanced mesh. Typically, warp and weft diameters are identical. This weave is ideal for general industrial applications and filtration requiring high flow rates.

Twilled Weave

In twilled weave, each weft wire alternately passes over and under every two warp wires, and vice versa. This pattern allows for heavier wire diameters than plain weave at the same mesh count, resulting in greater strength and finer filtration capabilities.

Plain Dutch Weave

Plain Dutch weave resembles plain weave but uses larger diameter warp wires compared to weft wires. The tightly packed weft wires produce a strong fabric while maintaining good flow rates, making it suitable for filtration and separation tasks.

Reverse Plain Dutch Weave

This weave inverts the wire diameters: weft wires are thicker than warp wires, leading to a higher warp mesh count. The resulting cloth offers excellent strength, easy cleaning, and high flow rate performance for demanding applications.

Twilled Dutch Weave

Twilled Dutch weave combines the Dutch weave structure with a twilled pattern, creating a double layer of weft wires. This results in a light-tight, smooth, and strong cloth with a restricted flow rate. The filtrate follows a sinuous path through the depth, making it ideal for micromesh filtration under high pressure.
