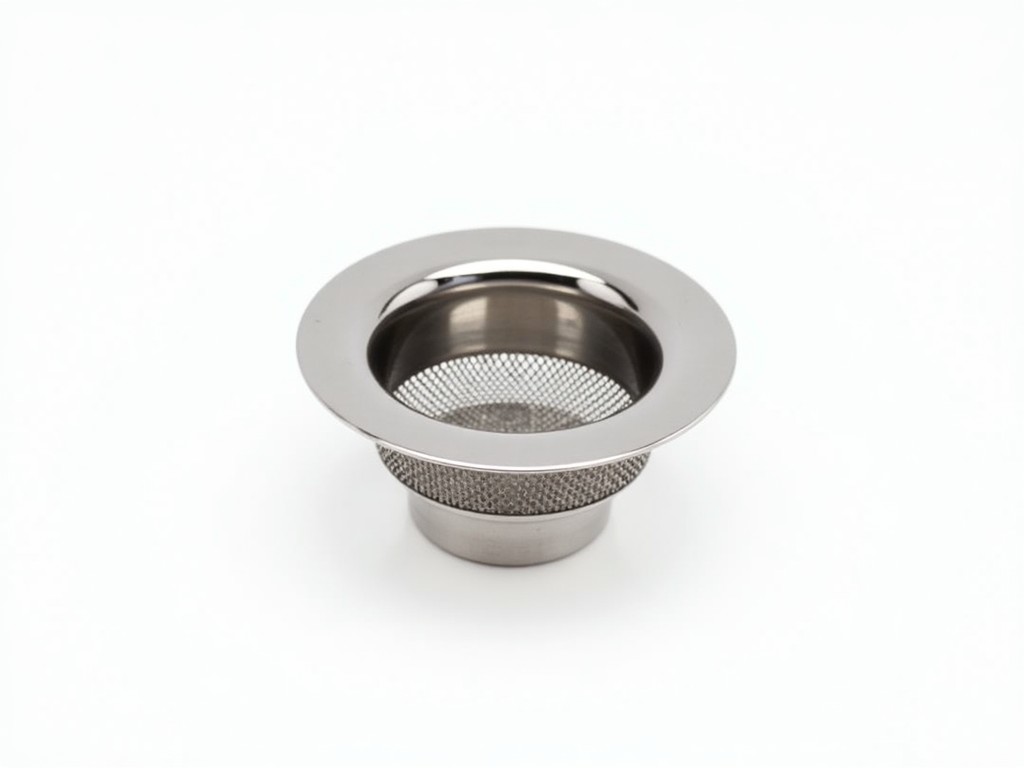

Factory Supply Stainless Steel Sink Drain Strainer

A stainless steel sink drain strainer prevents debris from entering plumbing systems while maintaining flow efficiency in industrial and commercial kitchens. This component is critical for facilities requiring hygienic drainage, reduced maintenance intervals, and compliance with sanitation standards. The following details explain material selection, dimensional specifications, installation considerations, and performance characteristics relevant to procurement and engineering teams.

Material Composition and Corrosion Resistance

The strainer body and perforated screen are constructed from AISI 304 stainless steel, containing 18% chromium and 8% nickel, which forms a passive chromium oxide layer resistant to oxidation in wet environments. This alloy withstands repeated exposure to detergents, food acids, and temperature fluctuations typical in food processing and hospitality applications. For environments with higher chloride exposure, such as coastal facilities or chemical washdown zones, AISI 316 stainless steel (with 2–3% molybdenum) is available upon request to resist pitting and crevice corrosion.

Surface finish is typically a brushed #4 satin finish (Ra 0.4–0.6 μm), which minimizes particulate adhesion and facilitates cleaning. Electropolishing is an optional treatment that further reduces surface roughness to Ra <0.2 μm, improving microbial cleanability in sanitary zones. All materials are mill-certified and traceable to heat numbers for quality audits.

Dimensional Specifications and Flow Dynamics

Standard drain strainers are designed to fit nominal 3-inch (76 mm) and 4-inch (102 mm) sink outlets, corresponding to common plumbing schedules in commercial fixtures. The strainer basket depth ranges from 40 mm to 60 mm, balancing debris retention capacity with minimal pressure drop. Perforation patterns consist of 3 mm diameter holes spaced at 6 mm centers, yielding approximately 20% open area — sufficient to maintain gravity-driven flow rates above 15 L/min under typical kitchen load conditions while capturing particles larger than 3 mm.

The flange outer diameter measures 89 mm for 3-inch models and 115 mm for 4-inch models, ensuring compatibility with standard sink drains and locknut assemblies. Threaded variants feature 1.5-inch NPSM male threads for direct coupling to drain pipes, while slip-fit models rely on compression gaskets and locking tabs for secure installation. Custom diameters, depths, and perforation sizes are available for OEM integration into specialized equipment such as dishwasher pre-rinse sinks or pharmaceutical wash stations.

Installation and Maintenance Considerations

Installation requires no tools for slip-fit models — the strainer is inserted into the drain outlet and secured via a downward-turning locking mechanism that engages a rubber gasket against the sink surface. Threaded models require hand-tightening of the drain body followed by a quarter-turn locknut to prevent vibration loosening. Over-tightening should be avoided to prevent deformation of the stainless flange or damage to the sink’s porcelain or composite surface.

Maintenance involves periodic removal of the strainer basket for manual cleaning. The smooth interior surfaces and lack of crevices allow for efficient cleaning with standard detergents and soft brushes. In high-throughput facilities, strainers are typically inspected and cleaned once per shift. The 304/316 stainless construction ensures no degradation from repeated thermal cycling or exposure to steam cleaning processes up to 120°C.

Applications in Industrial and Commercial Settings

These strainers are specified in food processing plants where vegetable trimming, meat preparation, and dairy processing generate particulate loads that could clog drain lines or interfere with grease traps. In commercial kitchens, they protect downstream plumbing from utensils, bone fragments, and packaging debris during pot washing and dish return operations. Facilities using chemical sanitization systems benefit from the inert nature of stainless steel, which does not react with chlorine-based or quaternary ammonia compounds.

Laboratories and pharmaceutical installations use strainers in sink drains to prevent glass shards or filter media from entering waste systems, reducing the risk of pipe blockages and contamination. Marine and offshore galleys specify 316-grade variants due to prolonged salt exposure. The strainer’s ability to maintain flow under partial blockage makes it suitable for continuous-operation environments where unattended drainage is required.

Quality Assurance and Traceability

Each strainer undergoes dimensional verification using calibrated gauges to confirm flange diameter, basket depth, and perforation alignment within ±0.2 mm tolerances. Visual inspection under 10x magnification ensures no burrs, sharp edges, or incomplete welds (if applicable) that could harbor contaminants or cause user injury. Material composition is verified via XRF spectrometry on a sampling basis per batch, with full mill test reports available upon request.

Packaging is designed for industrial handling: units are packed in corrugated cartons with internal dividers to prevent abrasion during transit. Each carton includes a packing list with part number, material grade, quantity, and heat lot code. For export shipments, desiccant packs and moisture-barrier liners are included to prevent surface staining during prolonged storage or humid conditions. Custom packaging, labeling, or kitting with mounting hardware is available for OEM clients.

Technical drawings, material certification, and installation guides are available upon request. For non-standard dimensions, specialized perforation patterns, or integration into custom drain assemblies, contact our engineering team with your application details including flow requirements, debris type, and environmental conditions. We provide design-for-manufacturability feedback to ensure compatibility with your plumbing infrastructure and maintenance protocols.
