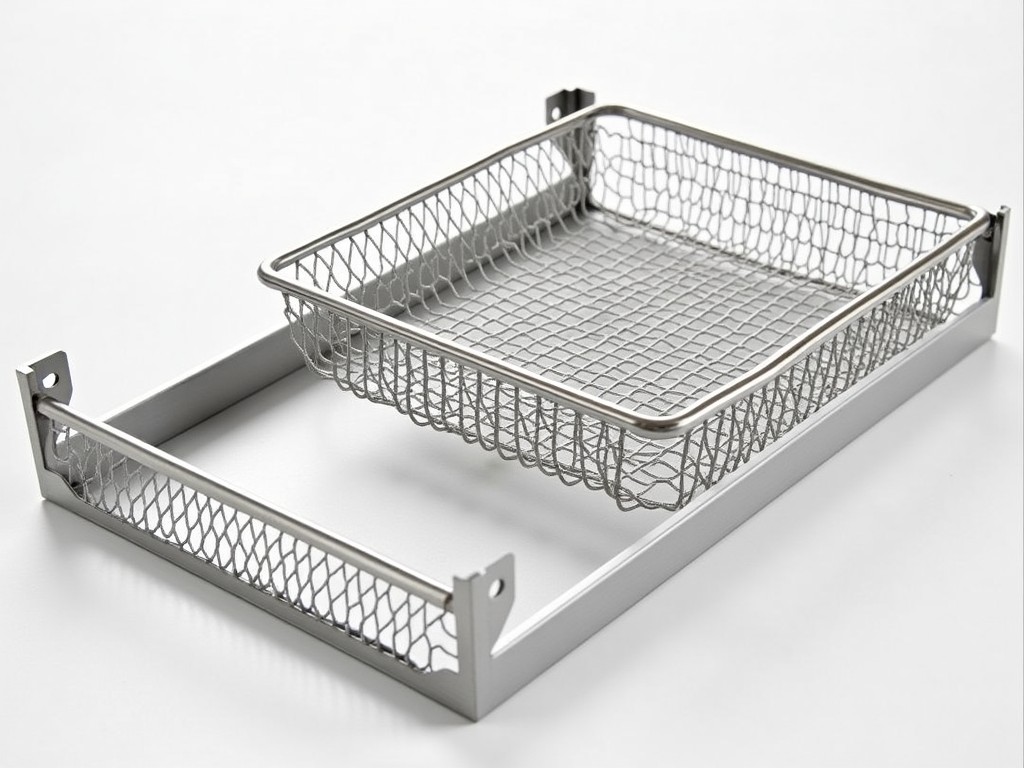

Stainless Steel Kitchen Pull Out Basket

A stainless steel kitchen pull out basket is a sliding storage component designed for base cabinets, allowing full extension access to contents without removing items from the cabinet. It replaces fixed shelves with a guided drawer mechanism that improves ergonomics and space utilization in commercial and residential kitchens.

Material Composition and Corrosion Resistance

The basket frame and mesh are typically fabricated from AISI 304 stainless steel, containing 18% chromium and 8% nickel, which forms a passive oxide layer that resists oxidation in humid environments. For applications involving frequent exposure to chlorides—such as near sinks or dishwashers—AISI 316 grade with 2-3% molybdenum is available upon request, offering enhanced pitting resistance in aggressive conditions.

Wire diameter ranges from 2.0mm to 3.5mm depending on load requirements, with mesh openings of 12mm x 12mm to balance item retention and airflow. All edges are deburred and electropolished to remove micro-burrs and improve surface finish, reducing particle accumulation and simplifying cleaning protocols.

Load Capacity and Slide Mechanism

Standard configurations support dynamic loads of 25kg to 40kg when fully extended, tested according to ANSI/KCMA A161.1-2017 for cycle life exceeding 50,000 open-close operations. Load ratings are determined by the slide system: ball-bearing slides with nylon rollers provide smoother operation under lighter loads, while steel roller bearings with reinforced rails handle higher static and dynamic forces.

Extension types include 3/4 extension (partial access), full extension (100% drawer travel), and over-travel (up to 120% for rear access). Soft-close dampers are optional, using hydraulic viscosity control to decelerate the final 60mm of closure, preventing impact damage to cabinet frames and contents.

Dimensional Standards and Customization

Nominal widths align with cabinet opening standards: 300mm, 400mm, 450mm, 500mm, 600mm, and 800mm, corresponding to internal cabinet widths minus side clearance (typically 22mm total for 11mm per side). Depths range from 450mm to 550mm to accommodate standard 600mm deep cabinets, with height options of 100mm, 150mm, and 200mm for varying storage needs.

Custom dimensions are available for non-standard cabinetry, requiring precise internal width, depth, and height measurements. Modifications to wire gauge, mesh pattern (e.g., tighter weave for small items), or slide type (e.g., side-mount vs. undermount) are evaluated based on load distribution and clearance constraints. All custom designs include deflection analysis to ensure sag remains under 2mm under rated load.

Surface Finish and Hygiene Considerations

Surface finishes include satin brush (unidirectional grit #180-240) for a uniform appearance that hides fingerprints, and electropolished finish for micro-smoothness (Ra < 0.4μm) that minimizes bacterial adhesion. Both finishes are achieved through chemical passivation baths after mechanical treatment, ensuring chromium enrichment at the surface for optimal corrosion resistance.

The open mesh design promotes air circulation, reducing moisture trapping compared to solid bases—critical for storing produce or wet utensils. No crevices or weld points are exposed on the interior surface; all joints are either laser-welded and ground flush or mechanically interlocked to eliminate harbor points for contaminants.

Installation and Adjustment Features

Mounting options include face-frame attachment via brackets or frameless (Euro-style) installation using side-mount clips that attach directly to cabinet side panels. Adjustment screws on the slide brackets allow ±3mm vertical and ±2mm horizontal alignment to compensate for cabinet squareness variations, ensuring smooth operation without binding.

Rear mounting brackets are adjustable in depth to accommodate varying cabinet back thicknesses (typically 16mm to 19mm). Anti-tip mechanisms are integrated into full-extension models, requiring a minimum 60mm rear clearance to engage and prevent forward tipping when loaded beyond 60% capacity.

Quality Control and Testing

Each batch undergoes salt spray testing (ASTM B117) for 96 hours minimum for 304 grade and 240 hours for 316 grade, with acceptance criteria of no red rust exceeding 3% surface area. Slide mechanisms are cycle-tested under load to verify retention force and smoothness, with friction coefficients measured to ensure consistent operation below 0.15µ.

Dimensional inspection uses coordinate measuring machines (CMM) to validate critical features: slide alignment, basket squareness, and wire spacing. Surface roughness is verified via profilometry, and load testing is conducted incrementally to 125% of rated capacity to confirm safety margins. All test records are retained for traceability.

Applications in Food Service and Retail Environments

In commercial kitchens, these baskets organize bulk ingredients, cleaning supplies, or utensils within arm’s reach of prep stations, reducing search time and improving workflow efficiency. The corrosion-resistant construction withstands frequent washing and exposure to food acids, oils, and alkaline cleaners without degradation.

Retail environments such as bakery displays or deli counters use narrower widths (300mm–400mm) to hold trays, bins, or packaging materials, with the open design allowing visibility and quick restocking. The smooth slide action supports frequent access during peak hours, minimizing strain on staff.

Ordering Information and Technical Support

To request a quotation, provide internal cabinet dimensions (width, depth, height), intended load type and weight, preferred extension style, and any environmental factors (e.g., proximity to sink, cleaning chemical exposure). Material grade and finish selection will be confirmed based on these inputs to ensure suitability.

Standard lead time is 3–4 weeks for stock configurations; custom designs require 5–6 weeks including design review and prototype approval. Packaging includes individual foam corner protection and cardboard sleeves to prevent finish damage during transit. Installation instructions and load charts are included with every shipment.
