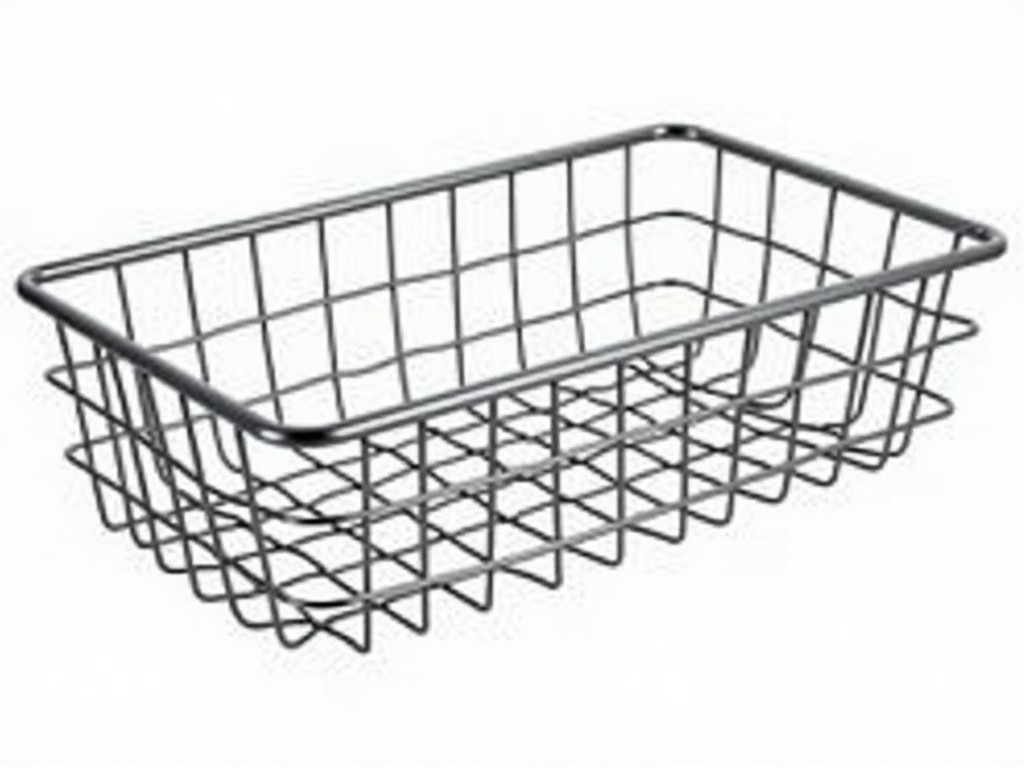

Stainless Steel Pull Out Basket

A stainless steel pull out basket is a modular storage component designed for smooth, full-extension movement within cabinets, racks, or enclosures. It enables efficient access to contents while maintaining structural integrity under load. These systems are commonly specified in industrial kitchens, laboratory environments, and manufacturing workspaces where hygiene, durability, and organized access are critical.

Material Composition and Corrosion Resistance

The basket frame and mesh are typically constructed from austenitic stainless steel grades such as 304 or 316. Grade 304 offers good resistance to oxidation and mild chemical exposure, suitable for dry or intermittently wet environments. Grade 316, with added molybdenum, provides superior resistance to chlorides and acidic compounds, making it ideal for food processing, pharmaceutical, or coastal industrial settings where frequent washdowns occur.

Surface finishes are usually polished to a #4 brushed or electropolished finish to minimize crevices where contaminants can accumulate. Electropolishing also enhances the passive chromium oxide layer, improving long-term corrosion resistance in humid or chemically active environments. Material thickness typically ranges from 0.8mm to 1.5mm for the frame and 0.6mm to 1.0mm for the mesh, depending on load requirements.

Load Capacity and Extension Mechanics

Pull out mechanisms use ball-bearing slides or roller systems rated for dynamic loads between 30kg and 100kg per pair, depending on slide size and mounting configuration. Full-extension designs allow the basket to travel completely out of the housing, enabling 100% access to stored items. Over-travel or soft-close options are available upon request to prevent impact damage during retraction.

Load distribution is critical—uniform loading across the basket base prevents deflection and ensures smooth operation. Manufacturers typically test slide assemblies to 50,000 cycles under rated load to verify longevity. Deflection under maximum load is generally limited to less than 2mm at the front edge to maintain alignment and prevent binding.

Standard Dimensions and Customization Options

Common basket widths range from 300mm to 600mm to match standard cabinet modules. Depths typically vary between 400mm and 650mm, while heights are available in 100mm, 150mm, and 200mm increments. Mesh opening sizes are selected based on contents—smaller openings (e.g., 10mm x 10mm) for utensils or small parts, larger openings (e.g., 25mm x 25mm) for bowls, trays, or bulk items.

Customization includes adjustable divider systems, solid bottom inserts for liquid containment, and specialized handles or grips for gloved operation. Mounting options support side-mount, under-mount, or frame-integrated configurations. All dimensions are typically customizable according to project requirements, with tolerances held to ±0.5mm for critical interfaces.

Industrial Applications and Functional Benefits

In food preparation areas, pull out baskets improve workflow by positioning tools and ingredients at ergonomic reach, reducing unnecessary movement. The open mesh design allows for drainage and airflow, preventing moisture buildup that could promote bacterial growth. In laboratories, they provide organized storage for glassware and reagents while resisting corrosion from cleaning agents and solvents.

Manufacturing facilities use these baskets in assembly lines or maintenance stations to hold frequently used components, reducing search time and improving 5S compliance. The ability to fully extend the basket eliminates the need to reach deep into fixed shelves, minimizing strain and improving accessibility for workers of varying heights. Unlike static shelving, pull out systems adapt to changing inventory needs through reconfiguration or replacement.

Quality Control and Manufacturing Considerations

Production involves precision laser cutting or stamping of sheet metal, followed by CNC bending to ensure dimensional consistency. Welding, when used, is performed with TIG techniques to maintain corrosion resistance in the heat-affected zone. All edges are deburred or rounded to prevent injury during handling and to avoid snagging of gloves or fabrics.

Before assembly, components undergo passivation treatment to remove free iron and enhance the protective oxide layer. Final inspection includes slide operation testing, load verification, and visual assessment of finish uniformity. Packaging typically uses protective corner guards and moisture-barrier wraps to prevent damage during transit, especially for export shipments.

Ordering and Technical Support

To initiate a quotation, provide the required basket dimensions (width, depth, height), preferred stainless steel grade, mesh size, slide type, and mounting configuration. Indicate the intended environment (e.g., wet, dry, chemical exposure) to ensure proper material and finish selection. Drawings or sketches of the installation space help verify clearance and accessibility.

Lead times typically range from 2 to 4 weeks for standard configurations, depending on complexity and current production capacity. Samples are available upon request for validation of fit, function, and finish before full production. Technical support includes assistance with slide selection, load calculations, and integration into existing cabinetry or rack systems.
