China 6 ft Hog Wire Fence Panels: Technical Specifications and Industrial Applications

Hog wire fence panels measuring 6 feet in height are commonly specified for livestock containment, perimeter security, and agricultural boundary systems in industrial farming operations. These panels are constructed from welded steel wire mesh with specific gauge and opening dimensions designed to withstand animal pressure while maintaining structural integrity over extended service life. Understanding the material properties, dimensional tolerances, and installation requirements is essential for procurement engineers evaluating long-term performance and total cost of ownership.

Material Composition and Mechanical Properties

The primary structural component is low-carbon steel wire, typically ASTM A641 compliant, with a tensile strength ranging from 55,000 to 70,000 psi depending on the drawing process. Vertical and horizontal wires are resistance-welded at each intersection to form a rigid grid, eliminating reliance on friction or mechanical fasteners for joint integrity. Wire diameter varies by application; common specifications include 12.5 gauge (0.099") for standard livestock panels and 10 gauge (0.135") for high-impact zones such as corrals or handling facilities.

Corrosion protection is achieved through hot-dip galvanizing per ASTM A123, with a minimum zinc coating weight of 1.8 oz/ft² (equivalent to approximately 55 µm thickness). This coating provides sacrificial protection against atmospheric oxidation and moisture exposure, critical for panels installed in humid climates or irrigated fields. Alternative finishes such as galvanized-after-weld (GAW) or powder-coated variants are available upon request for specialized environments requiring enhanced chemical resistance or aesthetic integration.

Dimensional Specifications and Panel Configuration

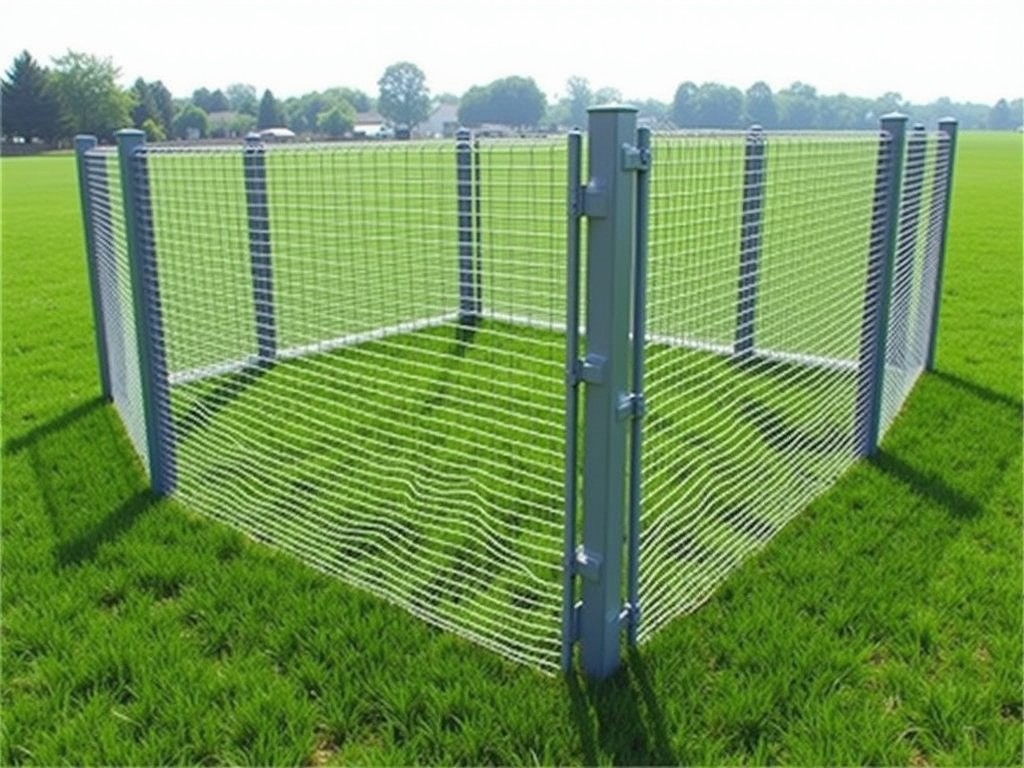

Standard 6 ft hog wire panels are manufactured with a nominal height of 72 inches, achieved through precise wire spacing and frame alignment during the welding process. The overall width typically ranges from 8 to 16 feet, with 8 ft and 10 ft being the most common lengths for ease of handling and installation. Wire spacing follows a graduated pattern: smaller openings (2" x 4") at the bottom to prevent hoof entrapment and deter small predators, transitioning to larger openings (4" x 4" or 6" x 6") in the upper sections to reduce material usage while maintaining visibility and airflow.

Edge reinforcement is achieved through the use of heavier gauge wire along the top and bottom perimeters, often 10 gauge or 8.5 gauge, to resist sagging and impact damage from animal contact. Vertical line wires are spaced at 6-inch intervals, while horizontal stays vary based on the opening configuration—typically every 6 inches in the lower 24 inches and every 12 inches above. All panels undergo dimensional inspection post-welding to ensure squareness within ±1/8 inch per foot and overall height tolerance of ±0.5 inch.

Structural Performance and Load Considerations

The welded mesh configuration provides inherent rigidity, distributing localized impact loads across multiple wire intersections. Under uniform lateral pressure—such as from livestock leaning or pushing—the panel’s resistance is governed by the wire’s yield strength, weld shear capacity, and the moment of inertia of the mesh structure. Finite analysis of similar configurations indicates that a 12.5 gauge panel with 2" x 4" bottom openings can withstand approximately 150 lbs/ft² of distributed load before permanent deformation, assuming proper post spacing and embedment depth.

Post spacing is a critical design factor; standard recommendations range from 8 to 10 feet on center for 6 ft panels, depending on soil conditions and expected animal pressure. Corner and gate posts require larger diameters (typically 6.5" OD for steel posts) and deeper embedment (minimum 3.5 ft in concrete) to resist overturning moments. Intermediate line posts may use 2.75" OD galvanized steel or treated wood, with anti-lift brackets and tension wires often incorporated to maintain vertical alignment and prevent sagging over time.

Industrial Applications and Operational Benefits

In swine and cattle operations, 6 ft hog wire panels serve as primary containment barriers where animal height and behavior necessitate a barrier that prevents jumping or climbing while allowing visual monitoring. The open mesh design reduces wind loading compared to solid barriers, decreasing the risk of post displacement in exposed locations. Additionally, the panels facilitate airflow and sunlight penetration, supporting better environmental conditions in pen areas than solid fencing alternatives.

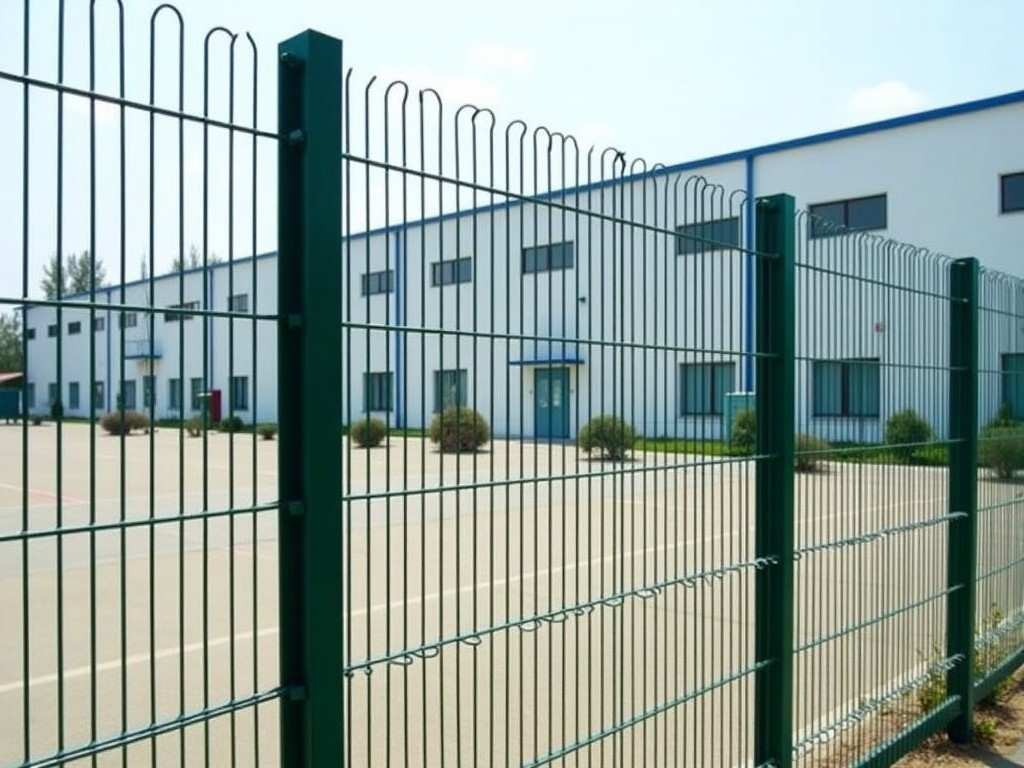

Beyond livestock systems, these panels are utilized in securing perimeter zones around feed storage facilities, equipment yards, and waste management areas where visibility and deterrence are prioritized over absolute physical obstruction. Their modular nature allows for rapid deployment and reconfiguration—critical in seasonal operations or expandable facilities. When integrated with electrified offset wires or motion-sensing systems, they contribute to layered security strategies without compromising the primary containment function.

Quality Control and Manufacturing Consistency

Production follows a standardized sequence: wire drawing to precise diameter, spooling and tension control, automated welding with calibrated electrode pressure and current, post-weld galvanizing (if applicable), and final inspection. Each batch undergoes tensile testing on representative wire samples, weld shear strength verification via peel testing, and coating thickness measurement using magnetic flux methods. Visual inspection checks for missed welds, wire cross-section uniformity, and surface defects such as drips or bare spots in the coating.

Dimensional verification is performed on a sampling basis using calibrated fixtures to confirm height, width, and opening dimensions. Panels are typically bundled in quantities of 10 to 20 units, protected with edge guards and stretch wrap, and secured on pallets for forklift handling. Export shipments include moisture barriers and corner bracing to prevent shifting during transit. Documentation such as material test reports (MTRs) and coating compliance certificates are available upon request for projects requiring traceability.

For projects requiring non-standard dimensions, custom wire gauges, or specialized coatings such as PVC-over-galvanized or stainless steel variants, engineering consultation is recommended early in the design phase. Factors such as local wind loads, animal species behavior, and lifecycle maintenance expectations should inform the selection of panel specifications. Suppliers typically provide shop drawings and load calculation support upon request to ensure compatibility with site conditions and regulatory requirements.
