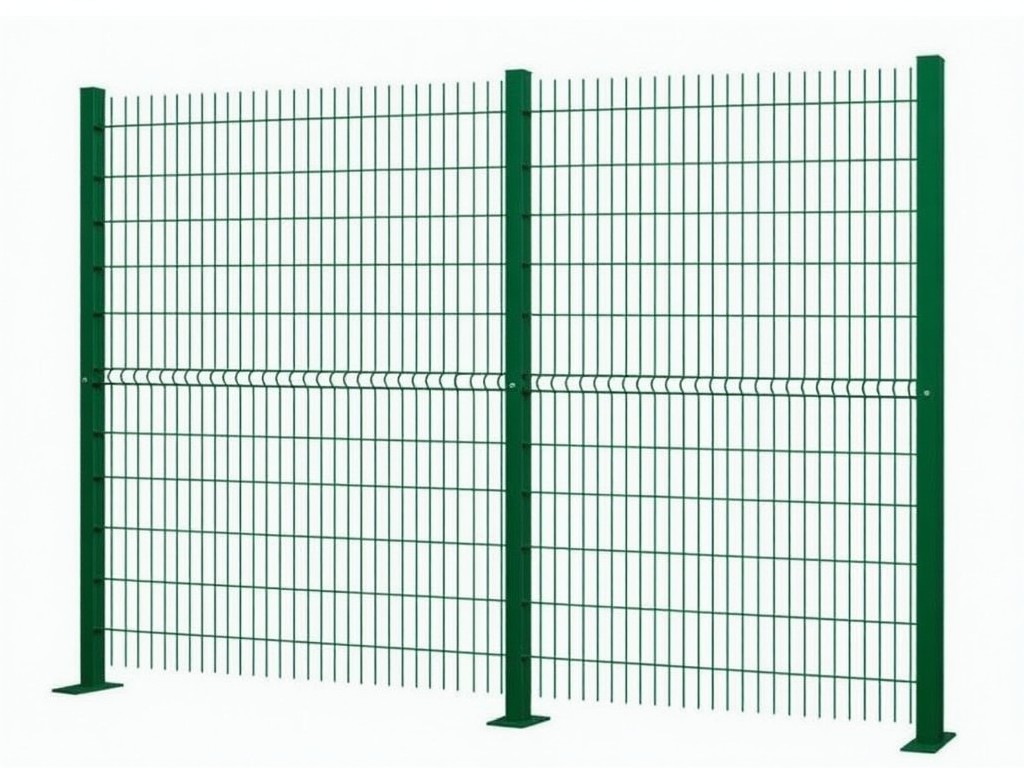

OEM Portable Security Fence Panels

Portable security fence panels are modular barrier systems designed for temporary or semi-permanent site protection. Unlike fixed fencing, they prioritize rapid deployment, reconfigurability, and transport efficiency while maintaining structural integrity under expected load conditions. OEM variants are engineered to meet specific client requirements regarding dimensions, material composition, connection mechanisms, and surface treatments, enabling integration into larger security or safety systems.

Structural Design and Load Considerations

Panel stability depends on the interaction between frame geometry, infill pattern, and base support. Typical designs use rectangular or square tubing frames with diagonal bracing or mesh infill to resist lateral forces from wind, impact, or attempted intrusion. The panel’s moment of inertia and section modulus determine its resistance to bending; taller panels require deeper frames or additional bracing to prevent buckling under uniform load. Base stands or weighted feet counteract overturning moments, with stability verified through static analysis simulating 150 km/h wind loads or equivalent dynamic impact.

Material Selection and Corrosion Resistance

Frame materials commonly include hot-dip galvanized steel (Z275 coating) or aluminum alloy 6061-T6, selected based on environmental exposure and weight constraints. Galvanized steel provides sacrificial protection against rust in humid or industrial environments, with coating thickness directly correlating to service life—typically 5–10 years in C3 environments before maintenance is needed. Aluminum offers 1/3 the density of steel with inherent oxide layer resistance, making it suitable for coastal or chemical exposure where weight reduction is critical. Infill options range from welded wire mesh (50x50mm, 3mm diameter) to perforated steel panels or polycarbonate sheets, each chosen for visibility, climb resistance, or projectile containment.

Connection Systems and Modularity

Inter-panel connectivity affects both erection speed and system rigidity. Common mechanisms include pin-and-lug couplers, rotating clamps, or interlocking flanges, each designed to resist shear and tensile forces without loosening under vibration. Pin systems allow angular adjustment for uneven terrain but require precise hole alignment; clamp systems tolerate minor misalignment but may introduce play under cyclic load. OEM designs often incorporate hardened steel pins with spring retainers or self-locking nuts to prevent disengagement. Modularity is further enhanced by standardizing panel widths (e.g., 2.0m, 2.5m) and heights (e.g., 2.0m, 2.4m, 3.0m) to enable scalable configurations while minimizing unique part counts.

Surface Treatments and Identification

Beyond corrosion protection, surface finishes serve functional and safety roles. Powder coating (typically 60–80μm thickness) provides UV stability and color coding for zone identification—commonly red for restricted areas, yellow for caution zones. Anti-glare matte finishes reduce visual disturbance in surveillance zones, while reflective strips (EN 13356 compliant) improve low-light visibility without external power. For high-theft-risk applications, panels may include embedded RFID tags or laser-etched serial numbers for inventory tracking, with data matrices readable at 1.5m distance under 200 lux ambient light.

Typical Applications in Industrial and Infrastructure Settings

Portable fence panels are deployed where permanent barriers are impractical due to changing site layouts, short-term projects, or regulatory requirements for removable infrastructure. In petrochemical plants, they isolate hot work zones during maintenance turnarounds, with mesh infill containing sparks while allowing gas detection sensor access. Railway maintenance crews use them to create dynamic exclusion zones around live tracks, relying on lightweight aluminum frames for manual handling by two personnel. Logistics centers employ perforated panels around staging areas to deter theft while enabling CCTV visibility, with weighted bases preventing displacement from forklift wake turbulence.

Customization Parameters for OEM Orders

OEM production allows adaptation to site-specific constraints not addressed by standard catalogs. Key variables include panel dimensions (height adjustable in 50mm increments, width in 100mm steps), frame thickness (1.2mm to 3.0mm based on load case), infill aperture size (ranging from 20x20mm for small-object containment to 100x100mm for visibility), and connection hardware type. Surface treatments can be tailored to match corporate color schemes (RAL or Pantone) or incorporate anti-graffiti coatings with sacrificial wax layers. Packaging is optimized for transport—flat-stacked with protective corner guards or nested in returnable metal stillages—to minimize warehouse footprint and handling damage.

Quality Assurance and Dimensional Control

Manufacturing consistency is verified through inline and final inspection protocols. Frame squareness is checked using diagonal deviation measurements (acceptance criterion: <5mm over 2.5m length). Infill tension is validated via push-pull tests on wire mesh (minimum 150N resistance to 10mm deflection). Weld joints undergo 100% visual inspection per ISO 5817 Level B, with magnetic particle testing on critical load-bearing connections. Coating thickness is measured via magnetic induction (ISO 2178) at five points per panel, with average values recorded in batch traceability logs. All dimensional checks are performed on calibrated CMMs or laser trackers with traceability to national standards.

Packaging and Logistics Optimization

Efficient transport reduces lifecycle cost and minimizes damage risk. Panels are typically stacked flat with interleaving polyethylene sheets to prevent surface abrasion, secured with polyester straps rated for 2,000kg breaking strength. Corner protectors (formed ABS or HDPE) absorb impact during handling. For repeated deployment scenarios, returnable steel stillages with casters and locking mechanisms allow panels to be moved as units, reducing unpacking time at destination. Export packaging complies with ISPM 15 for wood pallets or uses exempt materials like plastic or metal; volume optimization targets 90% trailer utilization to minimize per-unit freight cost.

Ordering Information and Technical Support

To initiate an OEM quotation, provide site-specific requirements including: expected wind zone (per ASCE 7), anticipated impact loads, required service life, environmental exposure (ISO 12944 corrosivity category), and any integration needs with access gates or surveillance poles. Clarify whether panels require pre-drilled holes for ancillary equipment mounting or if grounding provisions are necessary for electrical safety. Lead times typically range from 4–6 weeks after drawing approval, contingent on material availability and finish complexity. Sample panels can be provided for validation testing, with courier costs credited against the first production order.

For detailed specification sheets, CAD files, or to discuss your project’s unique security fencing requirements, contact our engineering team.
