Security fencing panels provide perimeter protection for industrial facilities, utility sites, and critical infrastructure. They combine structural integrity with controlled access, deterring unauthorized entry while allowing visibility and airflow where required.

Common applications include substation perimeters, water treatment plants, telecommunications sites, and manufacturing yards where both security and environmental factors must be balanced.

Panels are typically fabricated from hot-dip galvanized steel to resist corrosion in outdoor environments. The base material thickness ranges from 1.2mm to 2.0mm depending on load requirements and panel height.

Mesh patterns vary by application: welded wire mesh with 50mm x 50mm or 75mm x 50mm apertures offers climb resistance and visibility; expanded metal provides higher shear strength; perforated steel allows airflow while maintaining sight obstruction.

Surface treatments include polyester powder coating in standard colors (RAL 7016, 9005, 6005) for additional UV resistance and aesthetic integration with site surroundings.

Panel height commonly ranges from 1.8m to 3.0m, with width standardized at 2.5m to align with standard post spacing. Vertical ribs or V-beads are incorporated into the panel design to increase bending resistance without adding significant weight.

Mounting methods include bolted connections to galvanized steel or concrete posts, or welded attachment for permanent installations. Base plates with anchor bolts facilitate alignment and adjustment on uneven foundations.

Anti-climb features such as angled top extensions, rotating spikes, or tight mesh at the upper section can be integrated based on threat assessment.

Panels can be manufactured to non-standard widths to accommodate irregular site boundaries or integrate with existing structures. Cutouts for conduits, cable trays, or ventilation ducts are precision-punched during fabrication to maintain structural continuity.

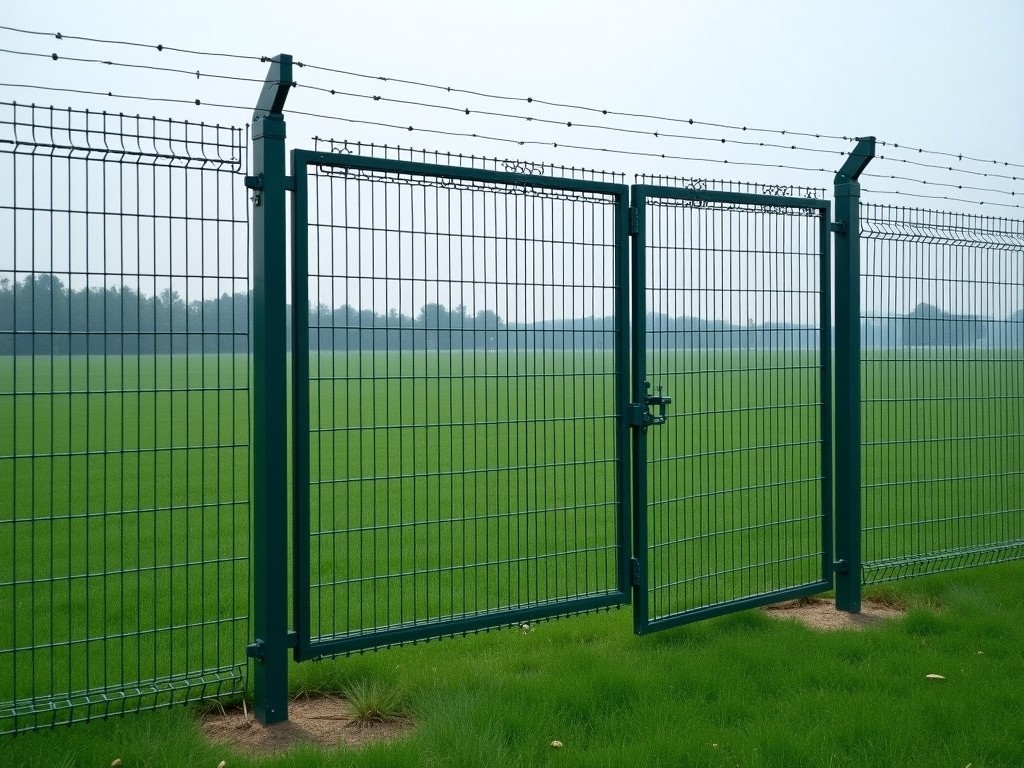

Integration with access control systems is facilitated through pre-drilled mounting points for electric strike plates, card readers, or interlocks. Gates matching panel specifications are available for vehicle and pedestrian access points.

Finish options include hot-dip galvanizing only, galvanizing plus powder coating, or specialized coatings such as zinc-aluminum alloy for marine or industrial atmospheres.

Dimensional tolerances are maintained within ±2mm for height and width, and ±1.5mm for aperture alignment. Weld points are inspected for penetration and uniformity, particularly in high-stress zones.

Coating thickness is measured via magnetic induction, with galvanized layers typically exceeding 55µm and powder coating averaging 80–120µm. Adhesion testing follows ASTM D3359 standards.

Load testing simulates wind pressure and impact forces, with panels validated to withstand specified design pressures without permanent deformation.

Panels are stacked horizontally on steel stillages with protective edge guards and polyethylene wrapping to prevent surface damage during transit. Each stillage includes corner protectors and steel strapping for load stability.

Standard packaging accommodates 10–15 panels per stillage depending on height and weight. Forklift access points are incorporated into the base design for safe handling at destination.

Export shipments include fumigated timber pallets or steel bases compliant with ISPM 15, with moisture-desiccant packs included in enclosed packaging for long-distance transport.

For technical specifications, customization options, or project consultation, contact our engineering team.
