Temporary Pool Safety Gates – Source Factory Solutions

Key Technical Features

• Frame: 6063-T5 aluminum extrusion, 1.5mm wall thickness, powder-coated to 60µm thickness for corrosion resistance in chlorinated environments
• Infill: 10mm twin-wall polypropylene, UV-stabilized (ASTM G1543), tensile strength ≥25 MPa, impact resistance per ASTM D256
• Latching mechanism: Gravity-assisted, stainless steel (304) spring-loaded latch with dual-action release; requires deliberate upward pull and forward push to open
• Base system: Weighted rubber feet (shore A 70) or optional ground stakes for soft surfaces; distributes load to prevent sinking or tipping
• Modularity: Standard panel widths of 0.6m, 0.9m, and 1.2m; connectors allow 15° angular adjustment for curved or irregular pool perimeters

Material Selection Rationale

Aluminum was selected over steel for the primary frame due to its superior strength-to-weight ratio, eliminating the need for heavy lifting equipment during installation. The 6063-T5 alloy provides minimum yield strength of 210 MPa, sufficient to withstand wind loads up to 120 km/h when properly anchored. Powder coating adds a sacrificial layer that prevents pitting corrosion from pool chemicals, extending service life beyond 5 years with minimal maintenance.

Polypropylene infill resists degradation from chlorine and UV exposure better than polyethylene or PVC alternatives. Twin-wall construction increases stiffness by 40% compared to solid panels of equal weight, reducing flex under lateral load. The material is non-conductive and does not retain heat, improving safety in direct sunlight.

Stainless steel latches were chosen for their resistance to chloride-induced stress corrosion cracking. The spring mechanism uses 302-grade wire, tested to 10,000 cycles without loss of retention force. All fasteners are passivated stainless steel to prevent galvanic corrosion at dissimilar metal junctions.

Typical Applications

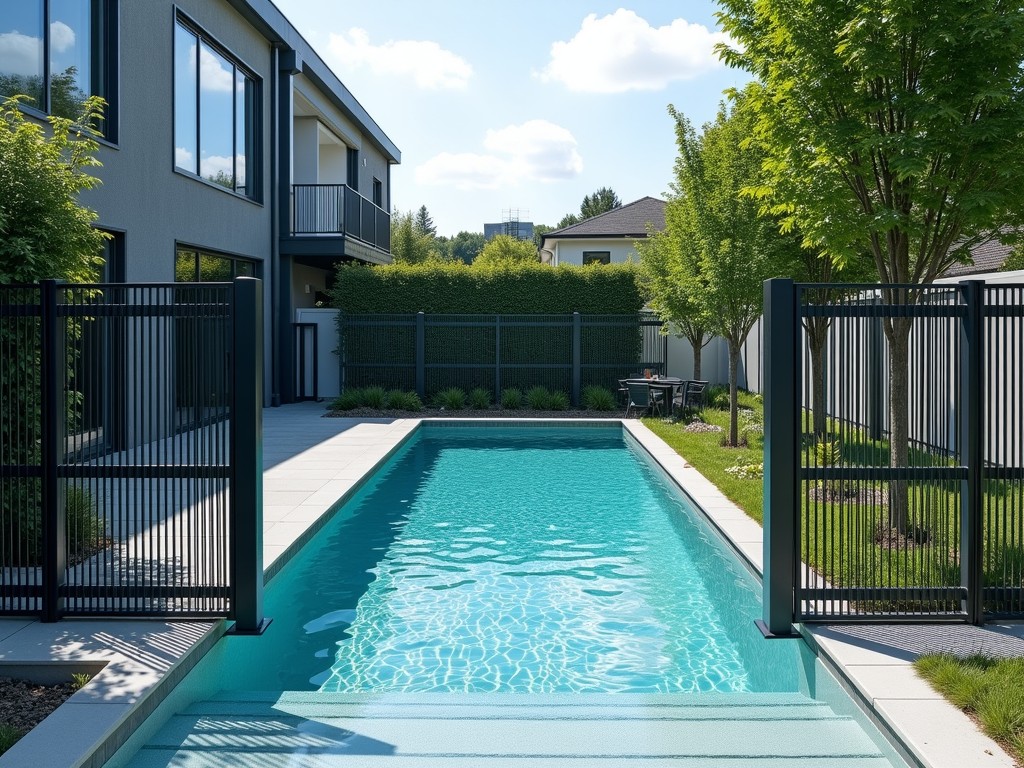

Temporary pool gates are most commonly deployed during new residential pool construction, where local regulations require barrier installation before water filling. Contractors use them to secure the site during plastering, tiling, and equipment installation phases, reducing liability and meeting inspector requirements for interim safety.

In commercial settings, such as hotels or apartment complexes undergoing renovation, these gates allow partial pool access for maintenance while isolating sections under work. The modular design enables quick reconfiguration as work zones shift, avoiding the cost and delay of fabricating custom temporary barriers.

Municipal facilities and public pools utilize these systems during off-season drainage or liner replacement. The ability to stack and store panels compactly (average 0.15m³ per 10m of barrier) makes them ideal for facilities with limited storage space. Rental companies also stock these units for event venues requiring short-term pool safety compliance.

Quality Control and Testing

Every production batch undergoes dimensional inspection of frame extrusions using calibrated CMM equipment, with tolerances held to ±0.2mm on critical mating surfaces. Infill panels are checked for wall thickness uniformity and surface defects via automated optical scanning. latch assemblies are cycle-tested on dedicated rigs simulating real-world use patterns.

Finished assemblies undergo load testing per ASTM F2286 Annex A1, applying 220N horizontal force at the top rail to simulate climbing attempts. Deflection is measured to ensure it remains below 25mm at any point. Latch release force is verified to fall between 22N and 55N, meeting the requirement for child-resistant yet adult-accessible operation.

Material certifications are maintained for all raw inputs: aluminum mill test reports, polypropylene batch certificates, and stainless steel composition verification. Random samples from each lot are sent for third-party chemical resistance testing in chlorinated water solutions (3–5ppm free chlorine, pH 7.2–7.8) to validate long-term performance claims.

Customization Options

While standard configurations meet most regional codes, the system supports project-specific adjustments. Frame height can be increased to 1500mm for facilities requiring enhanced deterrence, using extended extrusion profiles with compatible connectors. Infill panels are available in solid colors or with privacy screening options (up to 70% opacity) for sites requiring visual seclusion.

For uneven terrain, adjustable base plates with ±25mm vertical travel accommodate slope variations without compromising stability. In high-wind areas, optional ground anchor kits provide additional restraint using 600mm galvanized stakes driven to 400mm depth. All customizations retain tool-free assembly and maintain compliance with applicable safety standards.

Branding or safety decals can be applied to panels using UV-resistant vinyl, though this does not affect structural properties. Custom packaging is available for OEM clients, including nested stackable configurations or custom pallet sizes to optimize warehouse handling and reduce damage during transit.

For project-specific requirements not covered in the standard options, our engineering team reviews site plans, load conditions, and regulatory constraints to propose validated modifications. All custom solutions undergo the same QC protocol as standard products, with full documentation provided for client records.

Ordering and Lead Time

Standard configurations ship within 10–15 business days after receipt of approved drawings and payment. Custom orders require additional time for design validation and tooling preparation, typically extending lead time to 20–25 days. Expedited production is available for urgent projects, subject to capacity confirmation.

Minimum order quantity is 10 linear meters for standard models; custom designs may require higher MOQs based on material yield and setup costs. All quotations include itemized breakdowns of materials, labor, packaging, and export documentation. We provide 3D assembly drawings and installation videos upon request to support field teams.

To initiate a quotation, please provide: pool perimeter dimensions, ground surface type (concrete, soil, grass), required height, any known local code references, and delivery destination. Photos of the installation area help identify potential obstructions or terrain challenges.
