Metal Perforated Sheet Suppliers

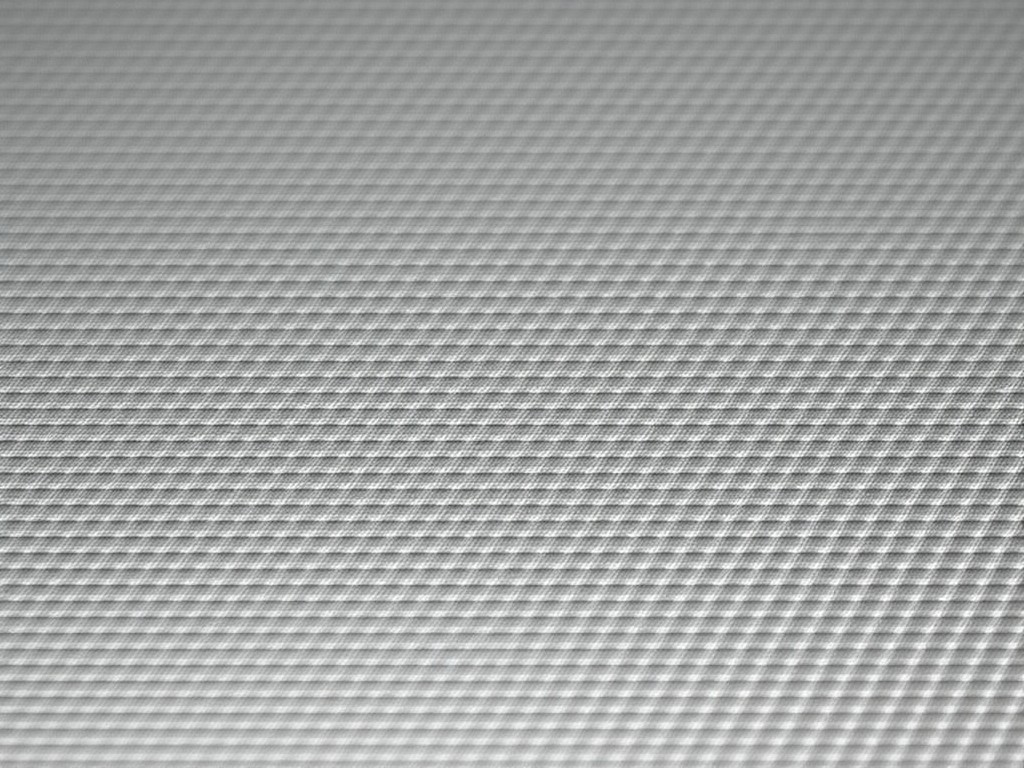

Metal perforated sheets are engineered materials created by punching precise hole patterns into flat metal stock. The resulting product combines structural integrity with controlled openness, enabling functions such as filtration, ventilation, acoustic dampening, light diffusion, and protective shielding. Suppliers in this sector provide not only the finished sheets but also technical guidance on material selection, hole geometry, open area percentage, and edge finishing to meet specific industrial requirements.

Material Selection and Properties

The base metal determines the sheet’s mechanical strength, corrosion resistance, weight, and suitability for environmental conditions. Common materials include carbon steel for general structural use, stainless steel grades 304 and 316 for corrosive environments, aluminum for lightweight applications, and galvanized steel for cost-effective outdoor exposure. Each material responds differently to the perforating process—stainless steel requires higher punch forces and may exhibit work hardening, while aluminum is prone to burring if tooling is not optimized. Suppliers must account for these characteristics when recommending material thickness and hole size to prevent distortion or tearing during fabrication.

Hole Patterns and Open Area Calculations

The arrangement, size, and spacing of perforations define the sheet’s functional performance. Standard patterns include round, square, slotted, hexagonal, and decorative designs, each affecting flow dynamics, stress distribution, and aesthetic outcome. Open area—the percentage of the sheet’s surface that is void—is a critical parameter calculated as (hole area / total area) × 100. For example, a 60° staggered round hole pattern with 3mm diameter holes on 6mm centers yields approximately 23% open area. Suppliers provide open area charts and custom pattern design services to help engineers match the sheet to specific airflow, filtration efficiency, or acoustic absorption targets.

Thickness and Dimensional Tolerances

Sheet thickness influences rigidity, load-bearing capacity, and the feasibility of small-hole perforation. Thinner gauges (0.5–1.5 mm) are typical for filtration and screening, while thicker sections (2–6 mm) serve in walkways, machine guards, and structural panels. Tolerances on thickness, length, width, and hole placement are governed by industry standards such as ASTM E2016 or internal supplier specifications. Precision CNC turret punches and laser systems achieve hole positional accuracy within ±0.1 mm, but thermal distortion during laser cutting may require post-processing stress relief for tight-tolerance applications.

Surface Treatments and Edge Finishing

Post-perforation treatments enhance durability and appearance. Options include deburring to remove sharp edges, powder coating for UV and chemical resistance, anodizing for aluminum, and passivation for stainless steel. Edge finishing—such as shearing, milling, or rolling—prevents injury and ensures safe handling during installation. Suppliers specify edge conditions (mill edge, slit edge, deburred edge) in technical drawings, as untreated edges can concentrate stress and initiate cracking under cyclic loading, particularly in thinner materials.

Typical Applications Across Industries

In HVAC systems, perforated sheets function as diffuser plates that distribute air evenly while attenuating noise. In food processing, they serve as drying trays and sorting screens where hygiene and cleanability are paramount—stainless steel with 2mm round holes on 4mm centers is common for bean sorting. Automotive manufacturers use them as heat shields and catalytic converter substrates, requiring materials that withstand thermal cycling. Architectural applications include facade panels and sun screens, where pattern aesthetics and shadow effects are designed using computational modeling. Industrial filtration relies on precise hole sizing to separate particles by size, with open area optimized to balance flow rate and capture efficiency.

Quality Control and Inspection Protocols

Reliable suppliers implement multi-stage inspection to verify conformance. Dimensional checks use calibrated calipers and coordinate measuring machines (CMM) to validate sheet size, hole diameter, and pitch. Open area is verified through optical scanning or gravimetric methods for critical filtration applications. Surface quality is assessed under standardized lighting to detect burrs, scratches, or coating defects. Mechanical properties such as tensile strength and yield are confirmed via mill test reports. For batch consistency, suppliers may conduct first-article inspection and periodic in-process checks during high-volume production runs.

Customization and Engineering Support

Off-the-shelf sheets meet standard needs, but many projects require tailored solutions. Suppliers offer custom hole patterns based on CAD files, non-standard layouts for directional flow control, and composite sheets with varying perforation zones. Engineering support includes load calculations for walkway panels, acoustic performance modeling for noise barriers, and fluid dynamics analysis for distributor plates. Prototyping services allow validation before full-scale production, reducing the risk of costly redesigns. Lead times for custom sheets typically range from 2 to 4 weeks, depending on material availability and pattern complexity.

Packaging and Logistics Considerations

Perforated sheets are susceptible to deformation during transit if not properly packaged. Suppliers use flat pallets with edge protectors, interleaving sheets with polyethylene film to prevent abrasion, and strapping to prevent shifting. For thin or large-format sheets, wooden crates or steel frames provide rigidity. Humidity-controlled packaging may be specified for corrosion-sensitive materials. Export shipments include ISPM-15 compliant pallets and detailed packing lists. Clear labeling of material grade, thickness, pattern, and open area ensures correct identification at the destination.

Selecting a perforated sheet supplier involves evaluating not just product availability but technical depth, process control, and the ability to translate application requirements into manufacturable specifications. Engineers benefit from suppliers who provide material certifications, pattern design assistance, and clear documentation of tolerances and testing methods. The right partner reduces project risk by ensuring the perforated sheet performs as intended over its service life—whether filtering particulates, managing airflow, or contributing to a building’s environmental performance.
