Stainless Steel Wire Mesh Specification PDF

This technical document provides the complete specification for industrial-grade stainless steel wire mesh, engineered for applications requiring corrosion resistance, mechanical stability, and precise aperture control. The specification covers material grades, weave patterns, wire diameters, open area percentages, and tensile strength parameters essential for procurement and design validation.

Material Composition and Grade Selection

The wire mesh is manufactured from austenitic stainless steel grades 304, 316L, and 316Ti, selected based on environmental exposure and mechanical demands. Grade 304 offers general-purpose corrosion resistance in mild atmospheres, while 316L provides enhanced resistance to chlorides and acidic environments due to its molybdenum content. 316Ti adds titanium stabilization to prevent sensitization during welding or prolonged high-temperature exposure, making it suitable for thermal cycling applications.

Weave Patterns and Structural Characteristics

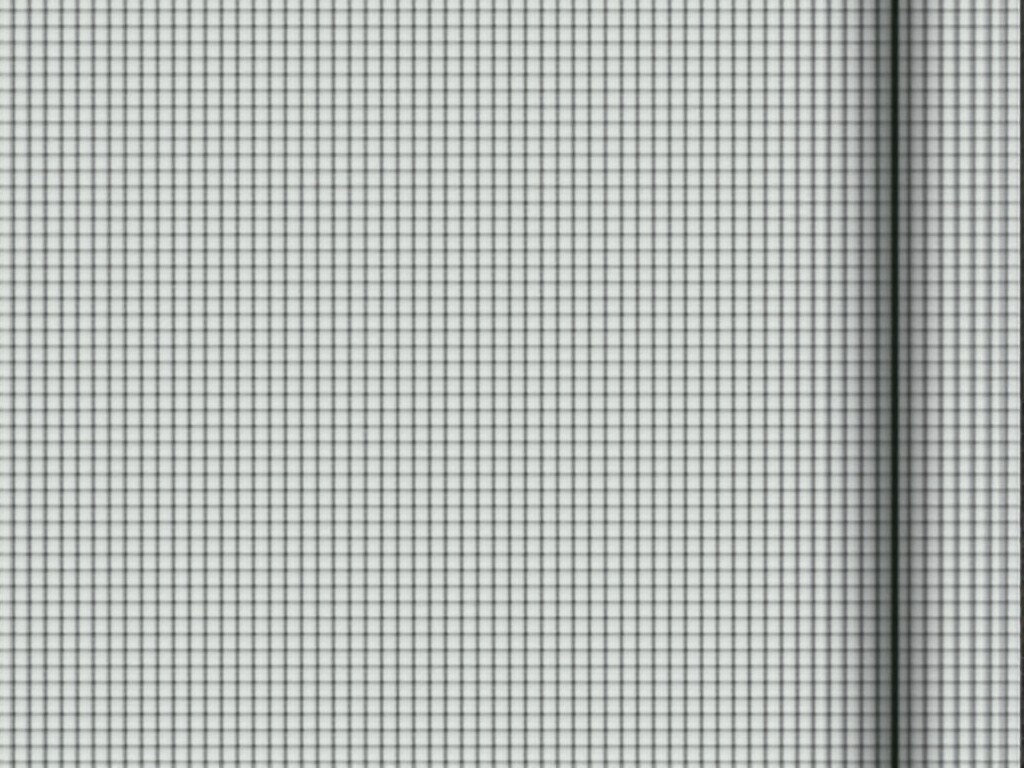

Available weave patterns include plain Dutch, twill Dutch, and plain square weaves, each influencing flow dynamics, filtration efficiency, and mechanical load distribution. Plain Dutch weave features a dense warp and finer shute wires, achieving high filtration precision with relatively low pressure drop. Twill Dutch weave increases wire interlacement for greater tensile strength and rigidity, while plain square weave offers uniform aperture geometry for screen printing and sizing applications.

Wire Diameter and Aperture Tolerances

Wire diameters range from 0.025 mm to 2.0 mm, with aperture sizes from 5 µm to 50 mm, depending on weave pattern and grade. Tolerances adhere to ISO 9044 and ASTM E2016 standards, with typical aperture deviation held within ±5% for precision grades and ±10% for standard industrial meshes. Open area percentage is calculated based on wire diameter and pitch, directly impacting flow capacity and pressure drop in fluid systems.

Mechanical and Performance Properties

Tensile strength varies by grade and cold work level, typically ranging from 500 MPa to 1200 MPa for fully hardened 316L. Elongation at break decreases with increased wire diameter and cold reduction, balancing formability with structural integrity. The mesh exhibits excellent fatigue resistance under cyclic loading, particularly in twill and Dutch weaves due to load distribution across multiple wire intersections.

Surface Finish and Edge Treatment

Standard finishes include annealed, pickled, and passivated surfaces to ensure corrosion resistance and contamination control. Edges can be supplied raw, welded, or folded with stainless steel binding wire to prevent fraying and facilitate handling. For hygienic applications, electropolishing is available to reduce surface roughness below 0.4 µm Ra, minimizing particulate adhesion and cleaning residue.

Typical Industrial Applications

This specification supports use in chemical processing filtration, pharmaceutical granulation screens, food and beverage strainers, aerospace hydraulic filters, and automotive catalyst supports. In each case, the mesh’s resistance to pitting, crevice corrosion, and stress corrosion cracking ensures long-term reliability where carbon steel or coated alternatives would degrade. The inert nature of stainless steel also prevents product contamination in sanitary processes.

Quality Control and Testing Protocols

Each roll undergoes 100% visual inspection for wire breaks, weave defects, and edge damage. Aperture verification is conducted via optical microscopy or image analysis per ASTM E11. Tensile testing follows ASTM A370 on wire samples drawn from the mesh. Chemical composition is confirmed via mill test reports, and passivation validity is assessed using copper sulfate or ferricyanide tests as required by ASTM A967.

Customization and Ordering Parameters

Custom specifications are available for non-standard widths, lengths, and roll configurations. Clients may request specific wire diameters, weave patterns, or edge treatments not listed in standard catalogs. Minimum order quantities vary by customization complexity, with standard rolls typically available from 1 m². Lead times depend on material availability and process load, generally ranging from 2 to 4 weeks for standard grades.

Comparison of Standard Mesh Configurations

Packaging and Handling Guidelines

Mesh is wound on corrosion-resistant cores with protective polyethylene film and labeled with grade, dimensions, batch number, and roll length. Rolls are stacked vertically in crush-resistant containers to prevent deformation. For widths exceeding 1.5 m, interleaving paper or corrugated board is used between layers to avoid abrasion. Handling instructions recommend gloves to prevent contamination and lifting equipment for rolls over 25 kg.

Environmental and Regulatory Compliance

The stainless steel wire mesh complies with RoHS, REACH, and FDA 21 CFR §177.2600 for food contact applications where applicable. Material test reports (MTRs) are provided upon request, documenting chemical composition, mechanical properties, and heat treatment history. The product is conflict-free and sourced from suppliers adhering to responsible mineral sourcing guidelines.
